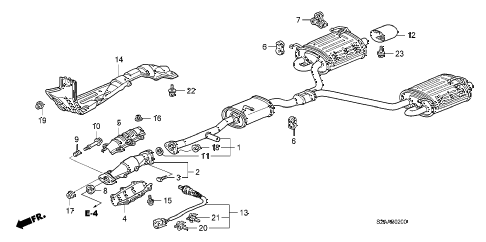

2009 s2000 CR(WITH AC) 2 DOOR 6MT EXHAUST PIPE - MUFFLER diagram
Back to Top
muffler set, ex.converterbolt, convertercover (lower)cover (upper)rubber, ex. mountingrubber, ex. mountingrubber, ex. mountinggasket, ex. flexiblespring, flexible jointbolt b, flexible jointgasket, ex. pipefinisher, ex.sensor, rr. oxygenplate, fr. floor heat bafflebolt-washer (6x16)nut, flange (6mm)nut, self-lock (8mm) (clinch)nut, self-lock (10mm)nut, paint cutting (6mm)nut, paint cutting (6mm)clip a, harness band (129.4mm)(dark gray)clip b, harness band (129.4mm)(dark brown)bolt-washer (6x12)bolt, flange (6x10)
