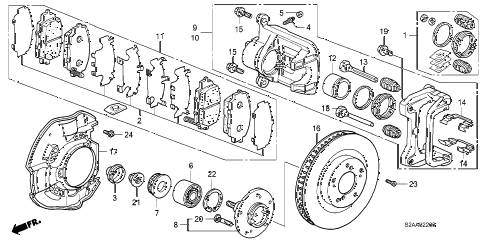

2009 s2000 CR(WITH AC) 2 DOOR 6MT FRONT BRAKE diagram
Back to Top
caliper setshim set, fr.cap, hub unitscrew, bleedercap, bleeder screwbearing assy., fr. hub (nsk)pulser assy., fr.hub assy., fr.caliper sub-assy., r. fr.caliper sub-assy., r. fr. (rmd)caliper sub-assy., l. fr.caliper sub-assy., l. fr. (rmd)pistonpin aretainerretainerbolt, flange (8x22)bolt, flange (8x22)disk, fr. brake (16")splash guard, fr.pin bbolt, caliper mounting (12x21)bolt, wheel (saga)bolt, wheel (rocknel fastener)nut, spindlecirclip (inner) (84mm)screw, flat (6x14)screw-washer (5x12)
