CONSOLE
View large diagramHide diagramView diagramView printable catalogTranslate

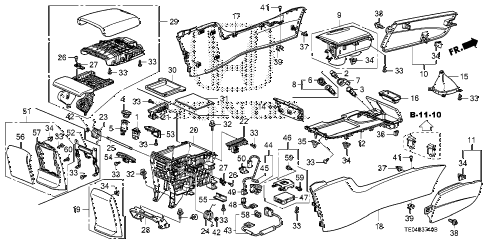

2010 accord EXL-V6 2 DOOR 6MT CONSOLE diagram

  • 001

    jack assy., aux in.

    Part Number: 39112-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $20.87

  • 004

    cap assy.

    Part Number: 39620-TA0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $14.03

  • 005

    socket assy.

    Part Number: 39624-SZ3-L01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $16.35

  • 006

    ring

    Part Number: 39624-S2K-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.97

  • 008

    socket assy.

    Part Number: 39632-SDA-L01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $28.52

  • 009

    holder assy., cup *nh167l*

    Part Number: 77230-TA5-A21ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $576.62

  • 009

    holder assy., cup *nh608l*

    Part Number: 77230-TA5-A21ZB
    (GUN METALLIC)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $576.62

  • 009

    holder assy., cup *nh167l*

    Part Number: 77230-TA5-A21ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $576.62

  • 009

    holder assy., cup *nh608l*

    Part Number: 77230-TA5-A21ZB
    (GUN METALLIC)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $576.62

  • 010

    cover assy., driver instrumentcenter (lower) *nh167l*

    Part Number: 77285-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 010

    cover assy., driver instrumentcenter (lower) *yr327l*

    Part Number: 77285-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 010

    cover assy., driver instrumentcenter (lower) *nh167l*

    Part Number: 77285-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 010

    cover assy., driver instrumentcenter (lower) *yr327l*

    Part Number: 77285-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 011

    cover, passenger instrument center (lower) *nh167l*

    Part Number: 77286-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 011

    cover, passenger instrument center (lower) *yr327l*

    Part Number: 77286-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 011

    cover, passenger instrument center (lower) *nh167l*

    Part Number: 77286-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 011

    cover, passenger instrument center (lower) *yr327l*

    Part Number: 77286-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $193.82

  • 012

    panel assy., console *nh608l*

    Part Number: 77296-TA5-A11ZB
    (GUN METALLIC)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $265.23

  • 014

    garnish, console box *nh167l*

    Part Number: 77297-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $65.53

  • 015

    boot assy., change lever *nh609l*

    Part Number: 77299-TA0-A01ZA
    (SILVER)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $47.88

  • 017

    panel *nh167l* (driver side)

    Part Number: 83401-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 017

    panel *yr327l* (driver side)

    Part Number: 83401-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 017

    panel *nh167l* (driver side)

    Part Number: 83401-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 017

    panel *yr327l* (driver side)

    Part Number: 83401-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 018

    panel *nh167l* (passenger side)

    Part Number: 83402-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 018

    panel *yr327l* (passenger side)

    Part Number: 83402-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 018

    panel *nh167l* (passenger side)

    Part Number: 83402-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 018

    panel *yr327l* (passenger side)

    Part Number: 83402-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $272.63

  • 019

    garnish assy., center console *nh167l*

    Part Number: 83403-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $101.95

  • 019

    garnish assy., center console *yr327l*

    Part Number: 83403-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $101.95

  • 019

    garnish assy., center console *nh167l*

    Part Number: 83403-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $101.95

  • 019

    garnish assy., center console *yr327l*

    Part Number: 83403-TA0-A01ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $101.95

  • 020

    box, console *nh167l*

    Part Number: 83404-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $199.73

  • 021

    rail, l. box *nh167l*

    Part Number: 83405-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $66.82

  • 022

    rail, r. box *nh167l*

    Part Number: 83406-TA0-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $64.58

  • 023

    spring, l.

    Part Number: 83407-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $13.13

  • 024

    spring, r.

    Part Number: 83408-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $13.13

  • 025

    pin, hinge

    Part Number: 83409-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.75

  • 026

    screw, tapping (2x6)

    Part Number: 83410-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.87

  • 027

    damper

    Part Number: 83411-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.07

  • 028

    bracket, center console

    Part Number: 83425-TA0-A00

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $29.67

  • 029

    armrest assy., console *nh167l* (lea)

    Part Number: 83450-TA5-A11ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $758.27

  • 029

    armrest assy., console *yr327l* (lea)

    Part Number: 83450-TA5-A11ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $758.27

  • 029

    armrest assy., console *nh167l* (lea)

    Part Number: 83450-TA5-A11ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $758.27

  • 029

    armrest assy., console *yr327l* (lea)

    Part Number: 83450-TA5-A11ZC
    (PEARL IVORY)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $758.27

  • 032

    bolt-washer (6x16)

    Part Number: 90123-SJA-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.90

  • 033

    screw, tapping (4x12) (po)

    Part Number: 90144-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.95

  • 034

    clip, snap fitting (po)(orange)

    Part Number: 90666-TA0-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.72

  • 035

    clip, snap fitting (po)(orange)

    Part Number: 90666-TA0-A11

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.72

  • 036

    clip, snap fitting (po)(orange)

    Part Number: 90666-TA0-A21

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.72

  • 037

    clip, snap fitting

    Part Number: 90669-SHJ-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $3.75

  • 038

    clip, tailgate *nh167l*

    Part Number: 91550-S50-G01ZE
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.48

  • 039

    grommet, screw (4mm)

    Part Number: 91640-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.85

  • 040

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.33

  • 041

    screw, tapping (4x16)

    Part Number: 93903-14480

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.65

  • 042

    e-ring (5mm)

    Part Number: 94540-05029

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $4.27
