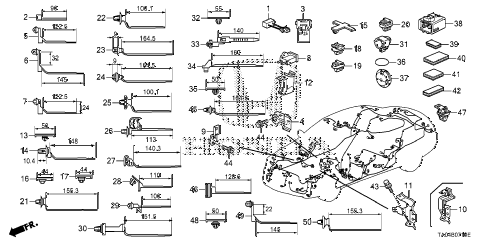

2010 accord EX-L(NAVI) 4 DOOR 5MT HARNESS BAND - BRACKET diagram
Back to Top
holder, corrugated (25mm) (black)bracket, cabin wire harnessband, wire harness offset (20)(122.5mm) (dark green)band, harness offset (30) (145mm) (dark gray)band, harness offset (10) (122.5mm) (brown)bracket, sub-ground cablestay, engine harnesscover, engine control module connector (a,b)clip, harness band (148mm) (black)clip, offset (10) (50mm) (brown)clip, wire harness (44mm) (natural)clip, wire harness (44mm) (natural)(w/seal)clip, connector (natural)clip, connector (dark gray)clip, relay holder (natural)clip, harness band (155.3mm) (black)clip, harness band (100.1mm) (natural)clip, harness band (164.5mm) (dark blue)clip, harness band (164.5mm) (dark blue)(w/seal)clip, harness band (100.1mm) (natural)(w/seal)holder, harness (113mm) (natural)clip, harness band (140.3mm) (black)clip, wire harness (110mm) (natural)clip, band (100mm) (black)clip, harness band (30) (151.5mm) (black)clip, wire harness (black)clip, wire harness (55mm) (white)clip, harness band offset (30)(natural)clip, harness band (167mm) (natural)clip, wire harness (black)holder, harness (black)connector, waterproof (23p 040 j/c) (black)plaster, wire harness (25x50)plaster, wire harness (50x100)plaster, wire harness (50x50)plaster, wire harness (25x100)bolt-washer (6x12)bolt, flange (6x12)bolt, flange (6x12)clip, harness band (164.5mm) (brown)clip, connector (dark brown)clip, wire harness (black)(w/seal)band, harness offset (20) (145mm) (dark blue)
