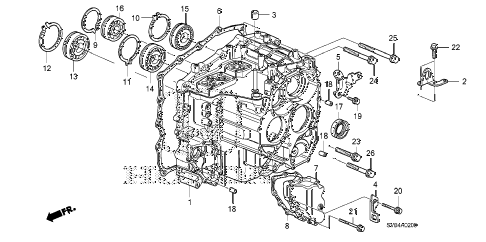

2010 civic EX 2 DOOR 5AT AT TRANSMISSION CASE diagram
Back to Top
case, transmissionhanger, transmissioncap, breatherstay a, harnessstay b, harnessgasket, torque converter casecover, solenoidgasket, solenoid coverring, snap (62mm)ring, snap (68mm)ring, snap (78mm)ring, snap (75mm)bearing, ball (27x75x18.5)bearing, ball (29x78x19/16)bearing, ball (29x68x13)bearing, ball (20x62x16.5)oil seal (35x56x8) (arai)pin, dowel (8x14)pin, dowel (8x14)pin, dowel (8x14)bolt, flange (6x12)bolt, flange (6x30)bolt, flange (6x45)bolt, flange (8x20)bolt, flange (10x40)bolt, flange (10x60)bolt, flange (10x80)bolt, flange (10x90)
