FRONT DOOR LOCKS - OUTER HANDLE
View large diagramHide diagramView diagramView printable catalogTranslate

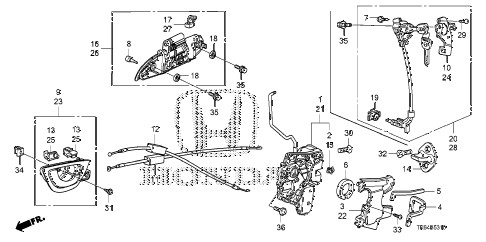

2010 fit SPORT(SUZUKA PLANT) 5 DOOR 5MT FRONT DOOR LOCKS - OUTER HANDLE diagram

  • 001

    latch assy., r. fr. door power

    Part Number: 72110-TF0-G11

    ''


    KA - US - 49 State Spec

    • $221.47

  • 002

    fastener (black)

    Part Number: 72111-SEN-H01

    ''


    KA - US - 49 State Spec

    • $3.55

  • 003

    cover, r. lever

    Part Number: 72112-SWA-A01

    ''


    KA - US - 49 State Spec

    • $2.55

  • 004

    seal, door latch

    Part Number: 72112-SYP-003

    ''


    KA - US - 49 State Spec

    • $4.85

  • 005

    seal, door latch

    Part Number: 72113-SYP-003

    ''


    KA - US - 49 State Spec

    • $5.32

  • 006

    seal, connector

    Part Number: 72114-SYP-003

    ''


    KA - US - 49 State Spec

    • $4.73

  • 007

    screw, tapping

    Part Number: 72118-SJK-003

    ''


    KA - US - 49 State Spec

    • $1.58

  • 008

    stopper

    Part Number: 72119-TF0-004

    ''


    KA - US - 49 State Spec

    • $2.58

  • 009

    handle assy., r. inside *nh699l*

    Part Number: 72120-TF0-J01ZA
    (NEUTRAL MAT GUN METALLIC)

    ''


    KA - US - 49 State Spec

    • $37.37

  • 011

    cable, fr. inside handle

    Part Number: 72131-TK6-A01

    ''


    KA - US - 49 State Spec

    • $12.57

  • 012

    cable, fr. door lock

    Part Number: 72133-TF0-000

    ''


    KA - US - 49 State Spec

    • $11.60

  • 013

    clip s, cable end (natural)

    Part Number: 72134-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 014

    striker assy., door lock

    Part Number: 72135-SDA-A01

    ''


    KA - US - 49 State Spec

    • $7.93

  • 015

    fastener (natural)

    Part Number: 72139-SR3-003

    ''


    KA - US - 49 State Spec

    • $6.12

  • 016

    handle assy., r. door (outer) *b548p*

    Part Number: 72140-TK6-A11ZA
    (DEEP SAPPHIRE BLUE PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *b549m*

    Part Number: 72140-TK6-A11ZB
    (SHERBET BLUE METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *nh578*

    Part Number: 72140-TK6-A11ZC
    (TAFFETA WHITE)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *nh642m*

    Part Number: 72140-TK6-A11ZD
    (STORM SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *nh731p*

    Part Number: 72140-TK6-A11ZE
    (CRYSTAL BLACK PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *pb83p*

    Part Number: 72140-TK6-A11ZF
    (PREMIUM DEEP VIOLET PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *r81*

    Part Number: 72140-TK6-A11ZG
    (MILANO RED)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 016

    handle assy., r. door (outer) *yr576m*

    Part Number: 72140-TK6-A11ZH
    (NEW BRILLIANT ORANGE METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 017

    bush, r. joint (brown)

    Part Number: 72141-TK6-004

    ''


    KA - US - 49 State Spec

    • $2.95

  • 018

    gasket

    Part Number: 72143-S04-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 019

    retainer

    Part Number: 72144-SJD-003

    ''


    KA - US - 49 State Spec

    • $4.85

  • 021

    latch assy., l. fr. door power

    Part Number: 72150-TK6-A02

    ''


    KA - US - 49 State Spec

    • $341.35

  • 022

    cover, l. lever

    Part Number: 72152-SWA-A01

    ''


    KA - US - 49 State Spec

    • $2.55

  • 023

    handle assy., l. inside *nh699l*

    Part Number: 72160-TF0-J01ZA
    (NEUTRAL MAT GUN METALLIC)

    ''


    KA - US - 49 State Spec

    • $37.37

  • 024

    protector, l. fr. handle (outer)

    Part Number: 72170-TF0-003

    ''


    KA - US - 49 State Spec

    • $9.59

  • 025

    clip t, cable end (black)

    Part Number: 72174-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 026

    handle assy., l. fr. door (outer) *b548p*

    Part Number: 72180-TK6-A01ZA
    (DEEP SAPPHIRE BLUE PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *b549m*

    Part Number: 72180-TK6-A01ZB
    (SHERBET BLUE METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *nh578*

    Part Number: 72180-TK6-A01ZC
    (TAFFETA WHITE)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *nh642m*

    Part Number: 72180-TK6-A01ZD
    (STORM SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *nh731p*

    Part Number: 72180-TK6-A01ZE
    (CRYSTAL BLACK PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *pb83p*

    Part Number: 72180-TK6-A01ZF
    (PREMIUM DEEP VIOLET PEARL)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *r81*

    Part Number: 72180-TK6-A01ZG
    (MILANO RED)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 026

    handle assy., l. fr. door (outer) *yr576m*

    Part Number: 72180-TK6-A01ZH
    (NEW BRILLIANT ORANGE METALLIC)

    ''


    KA - US - 49 State Spec

    • $84.63

  • 027

    bush, l. joint (yellow)

    Part Number: 72181-TK6-004

    ''


    KA - US - 49 State Spec

    • $2.95

  • 028

    cylinder, l. door

    Part Number: 72185-TF0-G01

    ''


    KA - US - 49 State Spec

    • $115.52

  • 029

    screw, tapping (one way)

    Part Number: 90101-SJK-003

    ''


    KA - US - 49 State Spec

    • $0.43

  • 030

    screw, flat (6x18.5)

    Part Number: 90103-S7S-003

    ''


    KA - US - 49 State Spec

    • $1.86

  • 031

    screw, tapping

    Part Number: 90120-SM4-000

    ''


    KA - US - 49 State Spec

    • $1.77

  • 032

    bolt, lock striker

    Part Number: 90120-SV4-000

    ''


    KA - US - 49 State Spec

    • $3.00

  • 033

    screw, tapping

    Part Number: 90141-SWA-A01

    ''


    KA - US - 49 State Spec

    • $0.12

  • 034

    grommet, screw (4mm)

    Part Number: 90866-SA0-000

    ''


    KA - US - 49 State Spec

    • $4.93

  • 035

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    ''


    KA - US - 49 State Spec

    • $1.22

  • 036

    screw-washer (6x12)

    Part Number: 93891-06012-00

    ''


    KA - US - 49 State Spec

    • $0.98
