P.S. GEAR BOX (EPS)
View large diagramHide diagramView diagramView printable catalogTranslate

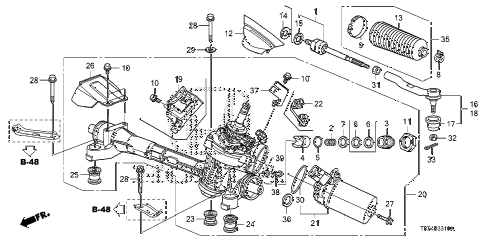

2010 fit SPORTN(NV,SUZUKA PLAN 5 DOOR 5MT P.S. GEAR BOX (EPS) diagram

  • 001

    end, rack

    Part Number: 53010-TK6-A02

    ''


    KA - US - 49 State Spec

    • $70.52

  • 002

    spring, rack guide pressure

    Part Number: 53413-SMA-003

    ''


    KA - US - 49 State Spec

    • $3.05

  • 003

    screw, rack guide

    Part Number: 53414-SMA-003

    ''


    KA - US - 49 State Spec

    • $13.82

  • 004

    guide, steering rack

    Part Number: 53416-TK6-A01

    ''


    KA - US - 49 State Spec

    • $15.30

  • 005

    o-ring (24x3.5)

    Part Number: 53417-SMA-003

    ''


    KA - US - 49 State Spec

    • $3.00

  • 006

    spring, conical

    Part Number: 53418-S2K-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 007

    washer, plain

    Part Number: 53419-S2K-003

    ''


    KA - US - 49 State Spec

    • $2.72

  • 008

    clip, steering tie rod

    Part Number: 53434-SAA-G01

    ''


    KA - US - 49 State Spec

    • $2.50

  • 009

    band

    Part Number: 53449-SYY-003

    ''


    KA - US - 49 State Spec

    • $5.28

  • 010

    bolt, flange (6x8)

    Part Number: 53451-S3A-003

    ''


    KA - US - 49 State Spec

    • $3.02

  • 011

    nut, lock

    Part Number: 53458-S2K-003

    ''


    KA - US - 49 State Spec

    • $6.43

  • 012

    grommet, steering

    Part Number: 53501-TK6-A00

    ''


    KA - US - 49 State Spec

    • $8.57

  • 013

    dust seal, tie rod

    Part Number: 53534-SYY-003

    ''


    KA - US - 49 State Spec

    • $14.93

  • 014

    spacer

    Part Number: 53535-SLA-003

    ''


    KA - US - 49 State Spec

    • $8.88

  • 015

    washer, tie rod lock

    Part Number: 53536-TK6-A01

    ''


    KA - US - 49 State Spec

    • $3.52

  • 016

    end, r. tie rod

    Part Number: 53540-TF0-003

    ''


    KA - US - 49 State Spec

    • $56.40

  • 017

    boot, tie rod end (nok)

    Part Number: 53546-S84-003

    ''


    KA - US - 49 State Spec

    • $3.10

  • 018

    end, l. tie rod

    Part Number: 53560-TF0-003

    ''


    KA - US - 49 State Spec

    • $56.40

  • 019

    bracket, motor connector

    Part Number: 53572-TK6-A01

    ''


    KA - US - 49 State Spec

    • $17.77

  • 020

    box, steering gear

    Part Number: 53601-TK6-A03

    ''


    KA - US - 49 State Spec

    • $1,392.67

  • 021

    motor

    Part Number: 53602-TK6-A02

    ''


    KA - US - 49 State Spec

    • $364.52

  • 022

    harness, eps

    Part Number: 53682-TK6-A01

    ''


    KA - US - 49 State Spec

    • $59.63

  • 023

    bush, steering gear box mounting (a)

    Part Number: 53684-SYY-003

    ''


    KA - US - 49 State Spec

    • $21.15

  • 024

    bush a, steering gear box mounting

    Part Number: 53684-TK6-A01

    ''


    KA - US - 49 State Spec

    • $8.68

  • 025

    bush c, steering gear box mounting

    Part Number: 53686-TK6-A01

    ''


    KA - US - 49 State Spec

    • $8.68

  • 026

    heat guard

    Part Number: 53692-TK6-A01

    ''


    KA - US - 49 State Spec

    • $29.20

  • 027

    bolt, flange (8x35)

    Part Number: 90105-SYY-003

    ''


    KA - US - 49 State Spec

    • $3.92

  • 028

    bolt, flange (10x60)

    Part Number: 90167-ST7-000

    ''


    KA - US - 49 State Spec

    • $4.80

  • 029

    washer, plain (10mm)

    Part Number: 90505-TF0-000

    ''


    KA - US - 49 State Spec

    • $3.87

  • 030

    o-ring, motor

    Part Number: 91351-SYY-003

    ''


    KA - US - 49 State Spec

    • $4.80

  • 031

    nut, hex. (14mm)

    Part Number: 94002-14280-0S

    ''


    KA - US - 49 State Spec

    • $1.33

  • 032

    nut, hex. (10mm)

    Part Number: 94030-10080

    ''


    KA - US - 49 State Spec

    • $0.97

  • 033

    pin, split (2.0x22)

    Part Number: 94201-20220

    ''


    KA - US - 49 State Spec

    • $0.82

  • 033

    pin, split (2.0x35)

    Part Number: 94201-20350

    ''


    KA - US - 49 State Spec

    • $0.82

Back to Top
end, rackspring, rack guide pressurescrew, rack guideguide, steering racko-ring (24x3.5)spring, conicalspring, conicalwasher, plainclip, steering tie rodbandbolt, flange (6x8)bolt, flange (6x8)bolt, flange (6x8)nut, lockgrommet, steeringdust seal, tie rodspacerwasher, tie rod lockend, r. tie rodboot, tie rod end (nok)end, l. tie rodbracket, motor connectorbox, steering gearmotorharness, epsbush, steering gear box mounting (a)bush a, steering gear box mountingbush c, steering gear box mountingheat guardbolt, flange (8x35)bolt, flange (10x60)bolt, flange (10x60)bolt, flange (10x60)washer, plain (10mm)o-ring, motornut, hex. (14mm)nut, hex. (10mm)pin, split (2.0x22)pin, split (2.0x35)
