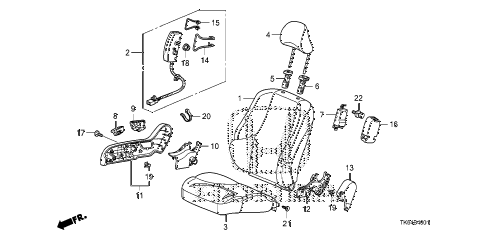

FRONT SEAT (R.) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: cover set, r. trim nh719l (side airbag) Part Number: 04811-TK6-A12ZA Standard Qty.: 001 Color: (KIRABI BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $499.60

Ref #: 002	Honda Part: module assy., r. side Part Number: 78050-TK6-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $325.60

Ref #: 003	Honda Part: pad & trim, r. fr. seat cushion nh719l Part Number: 81137-TK6-A01ZB Standard Qty.: 001 Color: (KIRABI BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $323.50

Ref #: 004	Honda Part: headrest assy., fr. nh167l Part Number: 81140-TK6-A01ZB Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $131.48

Ref #: 005	Honda Part: guide, headrest nh167l Part Number: 81143-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $11.13

Ref #: 006	Honda Part: guide, headrest lock nh167l Part Number: 81144-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $11.13

Ref #: 007	Honda Part: opds unit Part Number: 81169-TK6-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $684.17

Ref #: 008	Honda Part: knob, r. fr. seat reclining nh167l Part Number: 81231-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.87

Ref #: 009	Honda Part: cover, r. reclining lap (outer) nh167l Part Number: 81234-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $30.15

Ref #: 010	Honda Part: cover, r. inner-reclining (outer) nh167l Part Number: 81237-TK6-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.10

Ref #: 011	Honda Part: cover, r. reclining (outer) nh167l Part Number: 81238-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $28.06

Ref #: 012	Honda Part: cover, r. inner-reclining (inner) nh167l Part Number: 81247-TK6-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.10

Ref #: 013	Honda Part: cover, r. reclining (inner) nh167l Part Number: 81248-TF0-J01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.32

Ref #: 014	Honda Part: wire a, r. fr. seat-back airbag Part Number: 81285-TA0-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.10

Ref #: 015	Honda Part: wire b, r. fr. seat-back airbag Part Number: 81286-TA0-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $10.10

Ref #: 016	Honda Part: cover, fr. seat-back opds Part Number: 81561-TF0-Y11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.91

Ref #: 017	Honda Part: screw, tapping (5x10) Part Number: 90134-SE3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.45

Ref #: 018	Honda Part: nut-washer (6mm) Part Number: 90321-SP0-A80 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.38

Ref #: 019	Honda Part: clip, garnish Part Number: 90610-S10-003 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.97

Ref #: 020	Honda Part: band, oil hose Part Number: 90656-PB1-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.00

Ref #: 021	Honda Part: clip, trim (5mm) nh167l Part Number: 90666-SA0-003A3 Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.97

Ref #: 022	Honda Part: bolt-washer (6x12) Part Number: 93401-06012-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.85

Ref #: 001	Honda Part: cover set, r. trim nh719l (side airbag) Part Number: 04811-TK6-A12ZA Standard Qty.: 001 Color: (KIRABI BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$499.60

Ref #: 002	Honda Part: module assy., r. side Part Number: 78050-TK6-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$325.60

Ref #: 003	Honda Part: pad & trim, r. fr. seat cushion nh719l Part Number: 81137-TK6-A01ZB Standard Qty.: 001 Color: (KIRABI BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$323.50

Ref #: 004	Honda Part: headrest assy., fr. nh167l Part Number: 81140-TK6-A01ZB Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$131.48

Ref #: 005	Honda Part: guide, headrest nh167l Part Number: 81143-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$11.13

Ref #: 006	Honda Part: guide, headrest lock nh167l Part Number: 81144-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$11.13

Ref #: 007	Honda Part: opds unit Part Number: 81169-TK6-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$684.17

Ref #: 008	Honda Part: knob, r. fr. seat reclining nh167l Part Number: 81231-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.87

Ref #: 009	Honda Part: cover, r. reclining lap (outer) nh167l Part Number: 81234-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$30.15

Ref #: 010	Honda Part: cover, r. inner-reclining (outer) nh167l Part Number: 81237-TK6-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.10

Ref #: 011	Honda Part: cover, r. reclining (outer) nh167l Part Number: 81238-TA0-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$28.06

Ref #: 012	Honda Part: cover, r. inner-reclining (inner) nh167l Part Number: 81247-TK6-A01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.10

Ref #: 013	Honda Part: cover, r. reclining (inner) nh167l Part Number: 81248-TF0-J01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.32

Ref #: 014	Honda Part: wire a, r. fr. seat-back airbag Part Number: 81285-TA0-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.10

Ref #: 015	Honda Part: wire b, r. fr. seat-back airbag Part Number: 81286-TA0-J01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$10.10

Ref #: 016	Honda Part: cover, fr. seat-back opds Part Number: 81561-TF0-Y11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.91

Ref #: 017	Honda Part: screw, tapping (5x10) Part Number: 90134-SE3-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.45

Ref #: 018	Honda Part: nut-washer (6mm) Part Number: 90321-SP0-A80 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.38

Ref #: 019	Honda Part: clip, garnish Part Number: 90610-S10-003 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.97

Ref #: 020	Honda Part: band, oil hose Part Number: 90656-PB1-003 Standard Qty.: 006 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.00

Ref #: 021	Honda Part: clip, trim (5mm) nh167l Part Number: 90666-SA0-003A3 Standard Qty.: 002 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.97

Ref #: 022	Honda Part: bolt-washer (6x12) Part Number: 93401-06012-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.85
