CLUTCH MASTER CYLINDER (V6)
View large diagramHide diagramView diagramView printable catalogTranslate

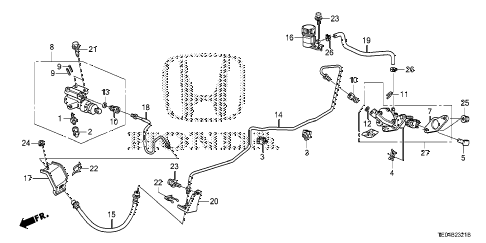

2011 accord EXL-V6 2 DOOR 6MT CLUTCH MASTER CYLINDER (V6) diagram

  • 001

    screw, bleeder

    Part Number: 43352-567-000

    ''


    KA - US - 49 State Spec

    • $7.07

  • 002

    cap, bleeder

    Part Number: 45353-S3Y-003

    ''


    KA - US - 49 State Spec

    • $7.85

  • 003

    clip, brake pipe

    Part Number: 46391-STK-A01

    ''


    KA - US - 49 State Spec

    • $1.85

  • 004

    pin, lock (8mm)

    Part Number: 46911-S70-003

    ''


    KA - US - 49 State Spec

    • $2.93

  • 005

    pin, clutch pedal

    Part Number: 46912-S84-A00

    ''


    KA - US - 49 State Spec

    • $3.83

  • 007

    seal, master cylinder

    Part Number: 46928-S5A-A01

    ''


    KA - US - 49 State Spec

    • $5.87

  • 008

    cylinder assy., clutch slave

    Part Number: 46930-SDP-A01

    ''


    KA - US - 49 State Spec

    • $105.78

  • 009

    pin, spring

    Part Number: 46931-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.20

  • 010

    connector, clutch master cylinder

    Part Number: 46941-S5A-003

    ''


    KA - US - 49 State Spec

    • $12.48

  • 011

    pin, snap

    Part Number: 46942-S5A-003

    ''


    KA - US - 49 State Spec

    • $4.48

  • 012

    seal, ring

    Part Number: 46943-S5A-003

    ''


    KA - US - 49 State Spec

    • $4.72

  • 013

    seal, ring

    Part Number: 46949-S5A-003

    ''


    KA - US - 49 State Spec

    • $2.60

  • 014

    pipe a, clutch

    Part Number: 46960-TA0-A02

    ''


    KA - US - 49 State Spec

    • $12.18

  • 015

    hose, clutch

    Part Number: 46961-TE1-A01

    ''


    KA - US - 49 State Spec

    • $16.42

  • 016

    tank assy., clutch

    Part Number: 46965-TA0-A02

    ''


    KA - US - 49 State Spec

    • $13.65

  • 017

    bracket b, clutch pipe

    Part Number: 46968-TE1-A01

    ''


    KA - US - 49 State Spec

    • $15.77

  • 018

    pipe b, clutch

    Part Number: 46970-TE1-A01

    ''


    KA - US - 49 State Spec

    • $7.07

  • 019

    tube, clutch fluid

    Part Number: 46971-TA0-A01

    ''


    KA - US - 49 State Spec

    • $9.17

  • 020

    bracket a, clutch pipe

    Part Number: 46995-TA0-A01

    ''


    KA - US - 49 State Spec

    • $18.10

  • 021

    bolt, flange (8x30)

    Part Number: 90106-S7A-E00

    ''


    KA - US - 49 State Spec

    • $3.15

  • 022

    clip, brake hose

    Part Number: 90651-538-000

    ''


    KA - US - 49 State Spec

    • $5.93

  • 023

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 024

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.47

  • 025

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.68

  • 026

    clamp, tube (d12)

    Part Number: 95002-41200-08

    ''


    KA - US - 49 State Spec

    • $1.85

  • 027

    master cylinder assy., clutch

    Part Number: 46925-TA0-A02

    ''


    KA - US - 49 State Spec

    • $168.22
