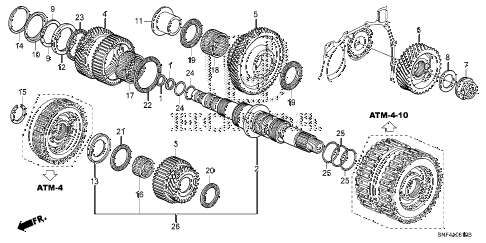

2011 civic GX 4 DOOR 5AT SECONDARY SHAFT diagram
Back to Top
seal, ring (21.2mm)seal, ring (21.2mm)shaft, secondarygear, secondary shaft lowgear, secondary shaft secondgear, secondary shaft fourthgear, secondary shaft idlenut, flange (24mm) (left hand thread)washer, spring (24mm)cotter (39mm)cotter (39mm)retainer, cottercollar (29x35x33)washer, thrust (43x54.5x2.900)washer, thrust (43x54.5x2.925)washer, thrust (43x54.5x2.950)washer, thrust (43x54.5x2.975)washer, thrust (43x54.5x3.000)washer, thrust (43x54.5x3.025)washer, thrust (43x54.5x3.050)washer, thrust (43x54.5x3.075)washer, thrust (43x54.5x3.100)washer, thrust (43x54.5x3.125)washer, thrust (43x54.5x3.150)washer, thrust (43x54.5x3.175)washer, thrust (43x54.5x3.200)washer, thrust (31x50x3.925)washer, thrust (31x50x3.950)washer, thrust (31x50x3.975)washer, thrust (31x50x4.000)washer, thrust (31x50x4.025)washer, thrust (31x50x4.050)washer, thrust (31x50x4.075)washer, thrust (31x50x4.100)washer, thrust (31x50x4.125)washer, thrust (31x50x4.150)washer, thrust (31x50x4.175)washer, thrust (31x50x4.200)washer, thrust (31x50x4.225)washer, thrust (31x50x4.250)washer, thrust (31x50x4.275)washer, thrust (31x50x4.300)washer, thrust (31x50x4.325)circlip, outer (43mm)circlip, outer (26mm)bearing, needle (31x38x18)bearing, needle (43x49x20.5)bearing, needle (35x41x24)needle, thrust (35x53x2.5)needle, thrust (35x53x2.5)needle, thrust (31x44x2.5)needle, thrust (38.5x51.5x2.5)needle, thrust (49.5x64x2.5)needle, thrust (43x55.5x2.5)o-ring (22.5x1.9)o-ring (22.5x1.9)o-ring (33x1.9) (arai)o-ring (33x1.9) (arai)o-ring (33x1.9) (arai)
