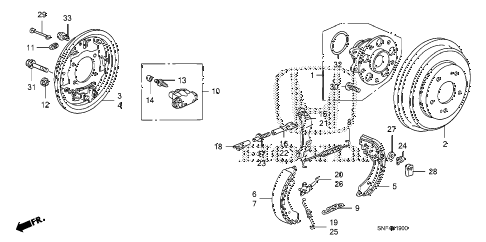

View large diagramHide diagramView diagramView printable catalog
  • 001

    bearing assy., rr. hub unit

    • Part Number: 42200-SNC-951

    '


    KA - US - 49 State Spec

    • $234.18

  • 002

    drum, rr. brake

    • Part Number: 42610-S7A-J01

    '


    KA - US - 49 State Spec

    • $90.05

  • 003

    plate, r. rr. brake back

    • Part Number: 43110-SNC-003

    '


    KA - US - 49 State Spec

    • $67.87

  • 004

    plate, l. rr. brake back

    • Part Number: 43120-SNC-003

    '


    KA - US - 49 State Spec

    • $67.87

  • 005

    shoe a, rr. brake

    • Part Number: 43153-S6A-J01

    '


    KA - US - 49 State Spec

    • $15.97

  • 006

    shoe b, r. rr. brake

    • Part Number: 43154-S6A-J01

    '


    KA - US - 49 State Spec

    • $15.97

  • 007

    shoe b, l. rr. brake

    • Part Number: 43155-S6A-J01

    '


    KA - US - 49 State Spec

    • $15.97

  • 008

    spring a, brake

    • Part Number: 43171-S84-A01

    '


    KA - US - 49 State Spec

    • $2.32

  • 009

    spring b, brake

    • Part Number: 43172-SM4-A02

    '


    KA - US - 49 State Spec

    • $4.15

  • 010

    cylinder assy., rr. wheel

    • Part Number: 43300-SNA-A01

    '


    KA - US - 49 State Spec

    • $37.63

  • 011

    plug, adjuster

    • Part Number: 43345-S04-003

    '


    KA - US - 49 State Spec

    • $0.88

  • 012

    plug, adjuster

    • Part Number: 43345-S5A-003

    '


    KA - US - 49 State Spec

    • $1.28

  • 013

    screw, bleeder (nissin)

    • Part Number: 43352-568-003

    '


    KA - US - 49 State Spec

    • $5.82

  • 014

    cap, bleeder screw

    • Part Number: 43353-SD5-003

    '


    KA - US - 49 State Spec

    • $3.28

  • 015

    lever, r. parking brake

    • Part Number: 43360-SCC-003

    '


    KA - US - 49 State Spec

    • $20.90

  • 016

    rod a, r. connecting

    • Part Number: 43362-S84-A01

    '


    KA - US - 49 State Spec

    • $5.67

  • 017

    bolt, r. adjuster

    • Part Number: 43363-S84-A01

    '


    KA - US - 49 State Spec

    • $5.27

  • 018

    rod b, connecting

    • Part Number: 43364-S84-A01

    '


    KA - US - 49 State Spec

    • $6.30

  • 019

    spring, r. adjuster

    • Part Number: 43367-SM4-A01

    '


    KA - US - 49 State Spec

    • $5.03

  • 020

    lever, r. adjuster

    • Part Number: 43368-S84-A01

    '


    KA - US - 49 State Spec

    • $8.50

  • 021

    lever, l. parking brake

    • Part Number: 43370-SCC-003

    '


    KA - US - 49 State Spec

    • $20.90

  • 022

    rod a, l. connecting

    • Part Number: 43372-S84-A01

    '


    KA - US - 49 State Spec

    • $5.67

  • 023

    bolt, l. adjuster

    • Part Number: 43373-S84-A01

    '


    KA - US - 49 State Spec

    • $10.63

  • 024

    u-clip

    • Part Number: 43375-SA0-003

    '


    KA - US - 49 State Spec

    • $0.57

  • 025

    spring, l. adjuster

    • Part Number: 43377-SM4-A01

    '


    KA - US - 49 State Spec

    • $5.03

  • 026

    lever, l. adjuster

    • Part Number: 43378-S84-A01

    '


    KA - US - 49 State Spec

    • $8.50

  • 027

    washer, wave

    • Part Number: 43379-SA5-003

    '


    KA - US - 49 State Spec

    • $2.27

  • 028

    spring, shoe clamp

    • Part Number: 45172-S04-003

    '


    KA - US - 49 State Spec

    • $1.07

  • 029

    pin, tensioner

    • Part Number: 45175-SA0-013

    '


    KA - US - 49 State Spec

    • $2.55

  • 030

    bolt, wheel (thai meira)

    • Part Number: 90113-S5H-005

    '


    KA - US - 49 State Spec

    • $3.28

  • 030

    bolt, wheel (saga)

    • Part Number: 90113-SA0-006

    '


    KA - US - 49 State Spec

    • $5.62

  • 030

    bolt, wheel (rocknel fastener)

    • Part Number: 90113-SM1-005

    '


    KA - US - 49 State Spec

    • $1.83

  • 031

    bolt, flange (10x53)

    • Part Number: 90163-SNA-000

    '


    KA - US - 49 State Spec

    • $2.60

  • 032

    o-ring (63x2.4) (ntn)

    • Part Number: 91352-SNA-951

    '


    KA - US - 49 State Spec

    • $3.78

  • 033

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

Back to Top
