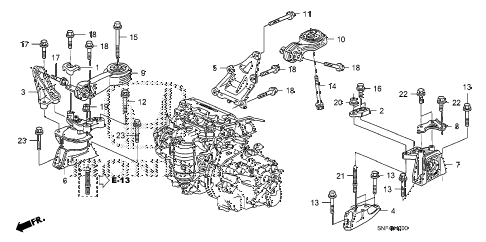

2011 civic GX 4 DOOR 5AT ENGINE MOUNTS diagram
Back to Top
weight, side mountingweight, transmission mountingstay, engine side mountingbracket, transmission mountingbasebracket, torque rod (lower)rubber assy., engine side mountingrubber assy., transmission mountingstay, transmission mountingrod, torque (upper)rod, torque (lower)bolt, hex. (10x1.25)bolt, flange (14x67)bolt, flange (12x40)bolt, flange (12x40)bolt, flange (12x40)bolt, flange (12x40)bolt, flange (14x93)bolt, flange (12x97)bolt, flange (12x63)bolt, flange (10x35)bolt, flange (10x35)bolt, flange (12x35)bolt, flange (12x35)bolt, flange (12x35)bolt, flange (12x35)bolt, flange (12x35)nut, flange (14mm)nut, flange (12mm)bolt, stud (12x83.8)bolt, flange (10x18)bolt, flange (10x18)bolt, flange (12x40)bolt, flange (12x40)
