HARNESS BAND - BRACKET
View large diagramHide diagramView diagramView printable catalogTranslate

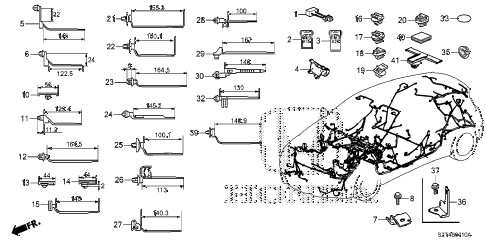

2011 cr-z BASE 3 DOOR CVT HARNESS BAND - BRACKET diagram

  • 001

    condenser (1.0 micro f)

    Part Number: 30510-TA0-A01

    ''


    KA - US - 49 State Spec

    • $38.57

  • 002

    holder, corrugated (15mm) (dark blue)

    Part Number: 32117-P65-003

    ''


    KA - US - 49 State Spec

    • $5.67

  • 003

    holder, corrugated (28mm) (dark brown)

    Part Number: 32125-TL0-003

    ''


    KA - US - 49 State Spec

    • $8.63

  • 004

    cover, engine control module connector (a,b)

    Part Number: 32128-RTA-003

    ''


    KA - US - 49 State Spec

    • $4.20

  • 005

    band, harness offset (30) (145mm) (dark gray)

    Part Number: 32133-SLA-003

    ''


    KA - US - 49 State Spec

    • $4.65

  • 006

    band, harness offset (10) (122.5mm) (brown)

    Part Number: 32134-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.55

  • 010

    clip, wire harness (50mm) (black)(harness taping)

    Part Number: 91507-693-003

    ''


    KA - US - 49 State Spec

    • $5.67

  • 011

    clip b, harness band (129.4mm)(dark green)

    Part Number: 91507-RTA-003

    ''


    KA - US - 49 State Spec

    • $4.62

  • 012

    clip, harness band (164.5mm) (brown)

    Part Number: 91507-SNA-003

    ''


    KA - US - 49 State Spec

    • $0.45

  • 013

    clip, wire harness (44mm) (natural)

    Part Number: 91531-S04-003

    ''


    KA - US - 49 State Spec

    • $3.82

  • 014

    clip, wire harness (44mm) (natural)(w/seal)

    Part Number: 91531-S84-003

    ''


    KA - US - 49 State Spec

    • $3.28

  • 016

    clip, connector (natural)

    Part Number: 91533-STK-003

    ''


    KA - US - 49 State Spec

    • $4.02

  • 017

    clip, connector (natural)(w/seal)

    Part Number: 91534-STK-003

    ''


    KA - US - 49 State Spec

    • $3.65

  • 018

    clip, connector (dark gray)

    Part Number: 91534-SWA-003

    ''


    KA - US - 49 State Spec

    • $5.83

  • 019

    clip, connector (dark blue)

    Part Number: 91535-STK-003

    ''


    KA - US - 49 State Spec

    • $5.33

  • 020

    clip, relay holder (natural)

    Part Number: 91536-STK-003

    ''


    KA - US - 49 State Spec

    • $0.93

  • 021

    clip, harness band (155.3mm) (black)

    Part Number: 91540-STK-003

    ''


    KA - US - 49 State Spec

    • $3.65

  • 022

    clip, harness band (100.1mm) (natural)

    Part Number: 91540-TA0-003

    ''


    KA - US - 49 State Spec

    • $0.27

  • 023

    clip, harness band (164.5mm) (dark blue)

    Part Number: 91542-SNA-003

    ''


    KA - US - 49 State Spec

    • $0.45

  • 024

    clip, harness band (145.2mm) (natural)(w/seal)

    Part Number: 91545-SV4-003

    ''


    KA - US - 49 State Spec

    • $7.22

  • 025

    clip, harness band (100.1mm) (natural)(w/seal)

    Part Number: 91545-TA0-003

    ''


    KA - US - 49 State Spec

    • $0.27

  • 026

    holder, harness (113mm) (natural)

    Part Number: 91549-STK-003

    ''


    KA - US - 49 State Spec

    • $1.07

  • 027

    clip, harness band (140.3mm) (black)

    Part Number: 91549-TA0-003

    ''


    KA - US - 49 State Spec

    • $0.73

  • 028

    clip, band (100mm) (black)

    Part Number: 91556-SM4-003

    ''


    KA - US - 49 State Spec

    • $5.55

  • 029

    clip, harness band (167mm) (natural)

    Part Number: 91559-S47-003

    ''


    KA - US - 49 State Spec

    • $6.12

  • 030

    clip, harness band offset (30)(natural)

    Part Number: 91559-ST5-003

    ''


    KA - US - 49 State Spec

    • $5.93

  • 032

    clip, wire harness (130mm) (natural)

    Part Number: 91571-S10-003

    ''


    KA - US - 49 State Spec

    • $5.67

  • 033

    seal, door hole (30mm) (black)

    Part Number: 91619-SE0-000

    ''


    KA - US - 49 State Spec

    • $2.88

  • 035

    plug, blind (7mm)

    Part Number: 95550-07000

    ''


    KA - US - 49 State Spec

    • $2.03

  • 036

    bracket, transmission ground cable

    Part Number: 32604-SZT-G00

    ''


    KA - US - 49 State Spec

    • $13.45

  • 037

    bolt, flange (6x12)

    Part Number: 90120-PZA-000

    ''


    KA - US - 49 State Spec

    • $2.05
