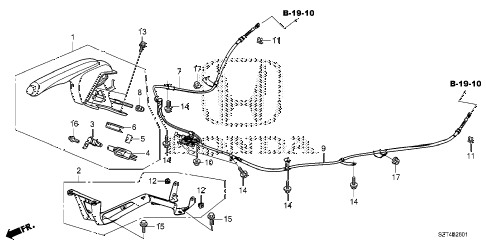

2011 cr-z EX 3 DOOR CVT PARKING BRAKE diagram
Back to Top
lever assy., hand brake *nh167l*bracket, baseswitch, parking brakeequalizerpin, equalizerguide, equalizerwire b, r. parking brakenut, adjusterwire b, l. parking brakenut, paint cutting (6mm)clip, brake hoseclip, brake hosegrommet, screw (4mm)grommet, screw (4mm)bolt-washer (8x20)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x20)bolt-washer (8x20)screw-washer (4x12)nut, flange (8mm)nut, flange (8mm)
