REAR BUMPER
View large diagramHide diagramView diagramView printable catalogTranslate

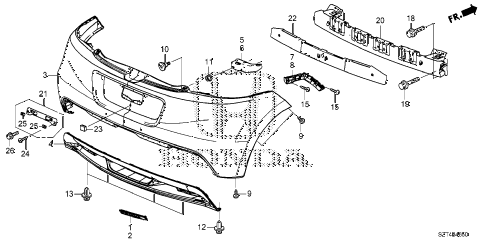

2011 cr-z EX 3 DOOR CVT REAR BUMPER diagram

  • 001

    garnish, r. rr. bumper diffuser

    Part Number: 71504-SZT-A00

    ''


    KA - US - 49 State Spec

    • $15.50

  • 002

    garnish, l. rr. bumper diffuser

    Part Number: 71509-SZT-A00

    ''


    KA - US - 49 State Spec

    • $15.50

  • 003

    face, rr. bumper (dot)

    Part Number: 04715-SZT-A90ZZ

    ''


    KA - US - 49 State Spec

    • $386.88

  • 004

    diffuser, rr. bumper

    Part Number: 71502-SZT-G00

    ''


    KA - US - 49 State Spec

    • $163.50

  • 005

    bracket, r. rr. bumper side

    Part Number: 71503-SZT-G00

    ''


    KA - US - 49 State Spec

    • $14.17

  • 006

    bracket, l. rr. bumper side

    Part Number: 71508-SZT-G00

    ''


    KA - US - 49 State Spec

    • $14.17

  • 007

    spacer, r. rr. bumper side

    Part Number: 71593-SZT-G01

    ''


    KA - US - 49 State Spec

    • $15.27

  • 008

    spacer, l. rr. bumper side

    Part Number: 71598-SZT-G01

    ''


    KA - US - 49 State Spec

    • $15.27

  • 009

    screw, tapping (5x20)

    Part Number: 90103-TA0-000

    ''


    KA - US - 49 State Spec

    • $0.43

  • 010

    bolt, bumper

    Part Number: 90149-SAA-003

    ''


    KA - US - 49 State Spec

    • $2.75

  • 011

    nut, paint cutting (6mm)

    Part Number: 90301-SP0-003

    ''


    KA - US - 49 State Spec

    • $3.27

  • 011

    nut, paint cutting (6mm)

    Part Number: 90301-SV7-000

    ''


    KA - US - 49 State Spec

    • $3.27

  • 012

    clip, fr. grille

    Part Number: 91503-S7A-003

    ''


    KA - US - 49 State Spec

    • $2.87

  • 013

    clip a, bumper

    Part Number: 91505-S9A-003

    ''


    KA - US - 49 State Spec

    • $2.70

  • 015

    screw, tapping (5x16)

    Part Number: 93903-25320

    ''


    KA - US - 49 State Spec

    • $0.58

  • 018

    bolt-washer (8x20)

    Part Number: 93406-08020-08

    ''


    KA - US - 49 State Spec

    • $1.13

  • 019

    bolt-washer (8x25)

    Part Number: 93407-08025-08

    ''


    KA - US - 49 State Spec

    • $1.37

  • 020

    beam, rr. bumper

    Part Number: 71530-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $255.48

  • 021

    stay, rr. license plate

    Part Number: 71545-SZT-A00

    ''


    KA - US - 49 State Spec

    • $11.58

  • 022

    absorber, rr. bumper beam

    Part Number: 71570-SZT-A00

    ''


    KA - US - 49 State Spec

    • $90.55

  • 023

    protector, license plate

    Part Number: 74827-S2G-010

    ''


    KA - US - 49 State Spec

    • $2.17

  • 024

    screw, tapping (5x14)

    Part Number: 90113-SJA-A00

    ''


    KA - US - 49 State Spec

    • $2.25

  • 025

    nut, clip (6mm)

    Part Number: 90675-SA5-003

    ''


    KA - US - 49 State Spec

    • $3.70

  • 026

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KA - US - 49 State Spec

    • $0.95
