DOOR LOCKS - OUTER HANDLE
View large diagramHide diagramView diagramView printable catalogTranslate

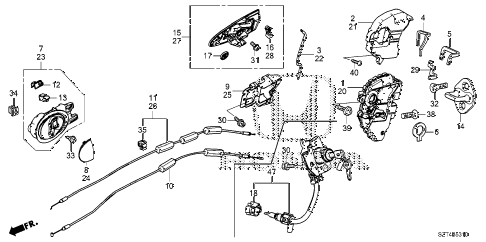

2011 cr-z EX 3 DOOR CVT DOOR LOCKS - OUTER HANDLE diagram

  • 001

    latch assy., r. fr. door power

    Part Number: 72110-SZT-G12

    ''


    KA - US - 49 State Spec

    • $241.43

  • 002

    protector, r. door latch

    Part Number: 72112-TL2-A01

    ''


    KA - US - 49 State Spec

    • $12.09

  • 003

    rod, r. door handle (outer)

    Part Number: 72113-SZT-003

    ''


    KA - US - 49 State Spec

    • $9.97

  • 004

    seal

    Part Number: 72117-TL2-A01

    ''


    KA - US - 49 State Spec

    • $6.07

  • 005

    seal

    Part Number: 72118-TL0-003

    ''


    KA - US - 49 State Spec

    • $6.07

  • 006

    seal

    Part Number: 72119-TL2-A01

    ''


    KA - US - 49 State Spec

    • $6.07

  • 007

    handle assy., r. inside *nh643l*

    Part Number: 72120-SZT-003ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $62.28

  • 008

    cap, r. inside handle *nh643l*

    Part Number: 72121-SZT-003ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $6.47

  • 009

    protector, r. fr. handle (outer)

    Part Number: 72130-SZT-003

    ''


    KA - US - 49 State Spec

    • $19.17

  • 010

    cable, fr. inside handle

    Part Number: 72131-SZT-003

    ''


    KA - US - 49 State Spec

    • $12.72

  • 010

    cable, fr. inside handle

    Part Number: 72131-SZT-013

    ''


    KA - US - 49 State Spec

    • $12.72

  • 011

    cable, r. fr. door lock

    Part Number: 72133-SZT-003

    ''


    KA - US - 49 State Spec

    • $13.08

  • 011

    cable, r. fr. door lock

    Part Number: 72133-SZT-013

    ''


    KA - US - 49 State Spec

    • $13.08

  • 012

    clip s, cable end (natural)

    Part Number: 72134-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 012

    clip t, cable end (black)

    Part Number: 72174-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 013

    clip s, cable end (natural)

    Part Number: 72134-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 013

    clip t, cable end (black)

    Part Number: 72174-SHJ-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 014

    striker assy., door lock

    Part Number: 72135-SDA-A01

    ''


    KA - US - 49 State Spec

    • $7.93

  • 015

    handle assy., r. fr. door (outer) *bg57p*

    Part Number: 72141-SZT-G01ZA
    (HORIZON TURQUOISE PEARL)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 015

    handle assy., r. fr. door (outer) *nh624p*

    Part Number: 72141-SZT-G01ZC
    (PREMIUM WHITE PEARL)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 015

    handle assy., r. fr. door (outer) *nh642m*

    Part Number: 72141-SZT-G01ZD
    (STORM SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 015

    handle assy., r. fr. door (outer) *nh731p*

    Part Number: 72141-SZT-G01ZE
    (CRYSTAL BLACK PEARL)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 015

    handle assy., r. fr. door (outer) *r81*

    Part Number: 72141-SZT-G01ZG
    (MILANO RED)

    ''


    KA - US - 49 State Spec

    • $168.78

  • 016

    bush, r. joint (brown)

    Part Number: 72141-TK6-004

    ''


    KA - US - 49 State Spec

    • $2.95

  • 017

    gasket

    Part Number: 72143-S04-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 018

    retainer

    Part Number: 72144-SJD-003

    ''


    KA - US - 49 State Spec

    • $4.85

  • 020

    latch assy., l. fr. door power

    Part Number: 72150-SZT-A02

    ''


    KA - US - 49 State Spec

    • $255.29

  • 021

    protector, l. door latch

    Part Number: 72152-TL2-A01

    ''


    KA - US - 49 State Spec

    • $12.09

  • 022

    rod, l. door handle (outer)

    Part Number: 72153-SZT-003

    ''


    KA - US - 49 State Spec

    • $9.97

  • 023

    handle assy., l. inside *nh643l*

    Part Number: 72160-SZT-003ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $62.28

  • 024

    cap, l. inside handle *nh643l*

    Part Number: 72161-SZT-003ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $6.47

  • 025

    protector, l. fr. handle (outer)

    Part Number: 72170-SZT-003

    ''


    KA - US - 49 State Spec

    • $19.17

  • 026

    cable, l. fr. door lock

    Part Number: 72173-SZT-003

    ''


    KA - US - 49 State Spec

    • $13.08

  • 026

    cable, l. fr. door lock

    Part Number: 72173-SZT-013

    ''


    KA - US - 49 State Spec

    • $13.08

  • 027

    handle assy., l. fr. door (outer) *bg57p*

    Part Number: 72181-SZT-003ZA
    (HORIZON TURQUOISE PEARL)

    ''


    KA - US - 49 State Spec

    • $168.78

  • 027

    handle assy., l. fr. door (outer) *nh624p*

    Part Number: 72181-SZT-003ZC
    (PREMIUM WHITE PEARL)

    ''


    KA - US - 49 State Spec

    • $168.78

  • 027

    handle assy., l. fr. door (outer) *nh642m*

    Part Number: 72181-SZT-003ZD
    (STORM SILVER METALLIC)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 027

    handle assy., l. fr. door (outer) *nh731p*

    Part Number: 72181-SZT-003ZE
    (CRYSTAL BLACK PEARL)

    ''


    KA - US - 49 State Spec

    • $162.24

  • 027

    handle assy., l. fr. door (outer) *r81*

    Part Number: 72181-SZT-003ZG
    (MILANO RED)

    ''


    KA - US - 49 State Spec

    • $154.02

  • 028

    bush, l. joint (yellow)

    Part Number: 72181-TK6-004

    ''


    KA - US - 49 State Spec

    • $2.95

  • 029

    seal

    Part Number: 72613-SNA-003

    ''


    KA - US - 49 State Spec

    • $9.93

  • 030

    bolt, flange socket (6x12)

    Part Number: 90115-SZT-000

    ''


    KA - US - 49 State Spec

    • $2.40

  • 031

    bolt, flange (6mm)

    Part Number: 90116-SZT-000

    ''


    KA - US - 49 State Spec

    • $2.40

  • 032

    bolt, lock striker

    Part Number: 90120-SV4-000

    ''


    KA - US - 49 State Spec

    • $3.00

  • 033

    screw, tapping (5x12)

    Part Number: 90141-SDA-000

    ''


    KA - US - 49 State Spec

    • $0.15

  • 034

    grommet, screw (5mm)

    Part Number: 90662-SB2-003

    ''


    KA - US - 49 State Spec

    • $0.62

  • 035

    clip, latch cable

    Part Number: 90691-SJD-003

    ''


    KA - US - 49 State Spec

    • $9.15

  • 038

    screw, flat (6x20)

    Part Number: 93600-06020-0A

    ''


    KA - US - 49 State Spec

    • $0.70

  • 039

    screw-washer (6x12)

    Part Number: 93891-06012-00

    ''


    KA - US - 49 State Spec

    • $0.98

  • 040

    screw, tapping (3x12)

    Part Number: 93901-22320

    ''


    KA - US - 49 State Spec

    • $0.65

  • 047

    cylinder, l. door

    Part Number: 72185-SZT-A01

    ''


    KA - US - 49 State Spec

    • $102.10
