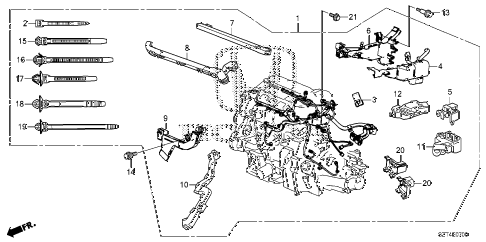

2011 cr-z EX 3 DOOR CVT ENGINE WIRE HARNESS diagram
Back to Top
wire harness, engineband, cable (100mm) (black)holder a, engine harness (upper)holder g, engine harness (upper)holder a, engine harness (lower)holder b, engine harnessholder c, engine harnessholder d, engine harnessholder f, engine harnessholder g, engine harness (lower)holder h, engine harnessbolt, special (6x28)bolt, special (6x17.8)clip a, harness band (129.4mm)(dark violet)clip b, harness band (129.4mm)(dark green)cover, engine control module connectorcover, engine control module connectorbolt, flange (6x12)
