FRONT BRAKE
View large diagramHide diagramView diagramView printable catalogTranslate

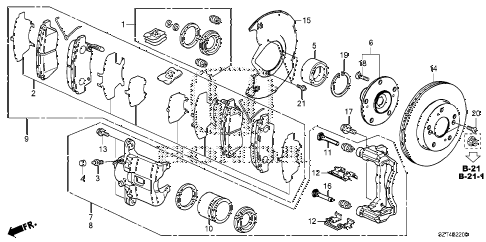

2011 cr-z EX(NV) 3 DOOR CVT FRONT BRAKE diagram

  • 001

    caliper set

    Part Number: 01463-S2A-000

    ''


    KA - US - 49 State Spec

    • $30.30

  • 002

    shim set, fr.

    Part Number: 06455-TF0-G00

    ''


    KA - US - 49 State Spec

    • $20.10

  • 003

    screw, bleeder

    Part Number: 43352-SM4-951

    ''


    KA - US - 49 State Spec

    • $5.63

  • 004

    cap, bleeder screw

    Part Number: 43353-SD5-003

    ''


    KA - US - 49 State Spec

    • $3.75

  • 005

    bearing assy., fr. hub

    Part Number: 44300-TK6-A01

    ''


    KA - US - 49 State Spec

    • $101.30

  • 006

    hub assy., fr.

    Part Number: 44600-SZT-000

    ''


    KA - US - 49 State Spec

    • $149.65

  • 007

    caliper sub-assy., r. fr.

    Part Number: 45018-SZT-A00

    ''


    KA - US - 49 State Spec

    • $343.20

  • 008

    caliper sub-assy., l. fr.

    Part Number: 45019-SZT-A00

    ''


    KA - US - 49 State Spec

    • $343.20

  • 009

    pad set, fr. (ak ns236h ef)

    Part Number: 45022-TK6-A00

    ''


    KA - US - 49 State Spec

    • $63.10

  • 009

    pad set, fr. (ak ns236h ef)

    Part Number: 45022-TK6-A01

    ''


    KA - US - 49 State Spec

    • $63.10

  • 010

    piston

    Part Number: 45216-S5A-J01

    ''


    KA - US - 49 State Spec

    • $43.10

  • 011

    pin a

    Part Number: 45235-SZT-G01

    ''


    KA - US - 49 State Spec

    • $11.08

  • 012

    retainer

    Part Number: 45237-TG5-H01

    ''


    KA - US - 49 State Spec

    • $6.20

  • 013

    bolt, flange (8x22)

    Part Number: 45240-SC2-003

    ''


    KA - US - 49 State Spec

    • $5.67

  • 014

    disk, fr. brake

    Part Number: 45251-SZT-020

    ''


    KA - US - 49 State Spec

    • $96.10

  • 015

    splash guard

    Part Number: 45255-SZT-G01

    ''


    KA - US - 49 State Spec

    • $17.80

  • 016

    pin (b)

    Part Number: 45263-SZT-G01

    ''


    KA - US - 49 State Spec

    • $16.23

  • 017

    bolt, caliper mounting (12x21)

    Part Number: 90107-SM4-000

    ''


    KA - US - 49 State Spec

    • $0.95

  • 018

    bolt, wheel (thai meira)

    Part Number: 90113-S5H-005

    ''


    KA - US - 49 State Spec

    • $3.42

  • 018

    bolt, wheel (saga)

    Part Number: 90113-SA0-006

    ''


    KA - US - 49 State Spec

    • $5.83

  • 018

    bolt, wheel (rocknel fastener)

    Part Number: 90113-SM1-005

    ''


    KA - US - 49 State Spec

    • $1.90

  • 019

    circlip, special (inner) (79mm)

    Part Number: 90681-SR3-A00

    ''


    KA - US - 49 State Spec

    • $10.90

  • 020

    screw, flat (6x14)

    Part Number: 93600-06014-0H

    ''


    KA - US - 49 State Spec

    • $0.62

  • 021

    screw-washer (5x12)

    Part Number: 93892-05012-08

    ''


    KA - US - 49 State Spec

    • $0.72
