View large diagramHide diagramView diagramView printable catalogTranslate

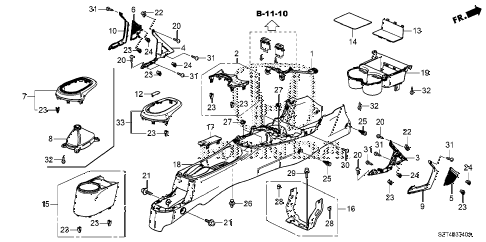

2011 cr-z EX(NV) 3 DOOR CVT CONSOLE diagram

  • 002

    garnish assy., center console *nh167l*

    Part Number: 77295-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $16.00

  • 003

    support, r. *nh167l*

    Part Number: 77271-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $12.27

  • 004

    support, l. *nh167l*

    Part Number: 77272-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $12.27

  • 005

    panel, r. mesh *nh167l*

    Part Number: 77273-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $11.48

  • 006

    panel, l. mesh *nh167l*

    Part Number: 77274-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $11.48

  • 009

    garnish set, r. *nh786l*

    Part Number: 77277-SZT-G01ZA
    (PURE METALLIC)

    ''


    KA - US - 49 State Spec

    • $110.70

  • 010

    garnish set, l. *nh786l*

    Part Number: 77278-SZT-G01ZA
    (PURE METALLIC)

    ''


    KA - US - 49 State Spec

    • $110.70

  • 012

    lid, shift lock *nh167l*

    Part Number: 77299-SZT-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $2.20

  • 013

    lid, console *nh167l*

    Part Number: 83401-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $10.35

  • 014

    mat, fr. console *nh167l*

    Part Number: 83402-SZT-000ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $9.17

  • 015

    console assy., rr. *nh643l*

    Part Number: 83405-SZT-G01ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $31.35

  • 016

    bracket assy., console

    Part Number: 83410-SZT-G00

    ''


    KA - US - 49 State Spec

    • $17.23

  • 017

    lid, hand brake cover *nh643l*

    Part Number: 83442-SZT-G01ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $7.82

  • 018

    console *nh643l*

    Part Number: 83450-SZT-G01ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $93.32

  • 019

    holder assy., fr. cup *nh167l*

    Part Number: 83455-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $31.07

  • 020

    screw, tapping (4x16) (it)

    Part Number: 90101-S2K-000

    ''


    KA - US - 49 State Spec

    • $1.52

  • 021

    screw-washer (4x16)

    Part Number: 90116-S1F-000

    ''


    KA - US - 49 State Spec

    • $0.57

  • 022

    nut, spring (4mm)

    Part Number: 90302-SA4-003

    ''


    KA - US - 49 State Spec

    • $3.73

  • 023

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    ''


    KA - US - 49 State Spec

    • $0.52

  • 024

    clip, snap fitting (po)(natural)

    Part Number: 90666-SLJ-003

    ''


    KA - US - 49 State Spec

    • $1.58

  • 025

    clip assy., trim *nh643l*

    Part Number: 90667-TC0-U01ZE
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $2.28

  • 026

    clip, pillar garnish (dark green)

    Part Number: 91560-SYA-J01

    ''


    KA - US - 49 State Spec

    • $0.68

  • 027

    grommet, screw (4mm)

    Part Number: 91640-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.48

  • 028

    grommet, screw (4mm)

    Part Number: 91641-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.48

  • 029

    bolt-washer (8x20)

    Part Number: 93414-08020-08

    ''


    KA - US - 49 State Spec

    • $0.95

  • 030

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KA - US - 49 State Spec

    • $0.57

  • 031

    screw, tapping (4x10)

    Part Number: 93913-24120

    ''


    KA - US - 49 State Spec

    • $0.57

  • 032

    screw, tapping (4x12)

    Part Number: 93913-24220

    ''


    KA - US - 49 State Spec

    • $0.57

  • 033

    garnish assy., shift lever *nh167l*

    Part Number: 77296-SZT-A01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $40.90
