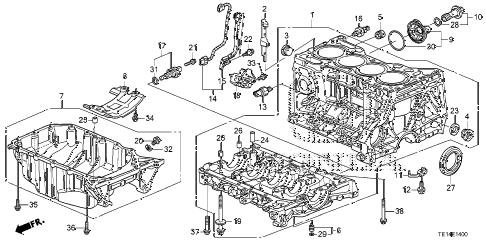

2012 accord LX-S 2 DOOR 5MT CYLINDER BLOCK - OIL PAN (L4) diagram
Back to Top
block assy., cylinder (dot)plate, partitionbolt, sealing (20mm)bolt, sealing (28mm)bolt, sealing (18mm)orifice assy., block (lower)pan assy., oilplate a, bafflecap, oil gallerybolt, gallery capbody, oil jetbolt, oil jetsensor, knocksub-wire, crank sensorholder, crank sub-wireswitch assy., oil pressuresensor assy., crankcover, crank sensorbolt-washer (11x95)bolt, plug (14mm)bolt, special (6x20.5) (guide)bolt, special (6x20.8)washer, sealing (28mm)pin, dowel (18x22)pin, dowel (13x20)pin, dowel (13x14)pin, dowel (13x14)oil seal (80x98x10) (arai)o-ring (32x2.4)o-ring (6.8x1.9)o-ring (62.4x3.1)o-ring (15x1.9)washer, drain plug (14mm)bolt, flange (6x14)bolt, flange (6x18)bolt, flange (6x30)bolt, flange (6x32)bolt, flange (8x35)bolt, flange (8x50)
