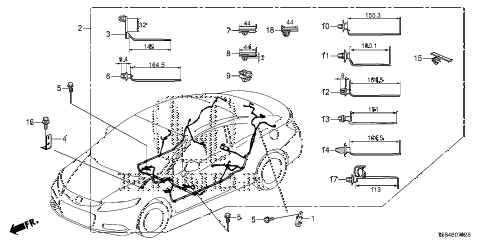

2012 civic DX 2 DOOR 5MT WIRE HARNESS (3) diagram
Back to Top
condenser (1.0 micro f)wire harness, floorwire harness, floorwire harness, floorwire harness, floorband, harness offset (30) (145mm) (dark gray)bracket, floor wire harnessbolt, ground (6x16) (washer 12.5mm) (zn)bolt, ground (6x16) (washer 12.5mm) (zn)bolt, ground (6x16) (washer 12.5mm) (zn)clip, harness band (164.5mm) (brown)clip, wire harness (44mm) (natural)clip, connector (natural)clip, harness band (155.3mm) (black)clip, harness band (100.1mm) (natural)clip, harness band (164.5mm) (dark blue)clip, harness band (151mm) (brown)(w/seal)clip, harness band (164.5mm) (dark blue)(w/seal)clip, offset (20) (natural)bolt-washer (6x16)
