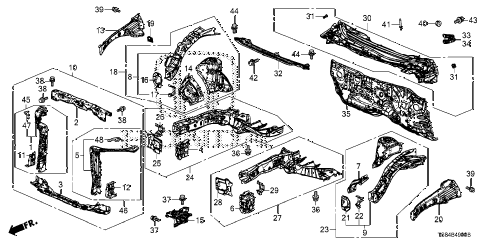

View large diagramHide diagramView diagramView printable catalog
  • 001

    panel set, r. fr. bulkhead

    • Part Number: 04601-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $118.38

  • 002

    frame set, fr. bulkhead (upper)

    • Part Number: 04602-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $169.50

  • 003

    crossmember set, fr. bulkhead (lower)

    • Part Number: 04603-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $104.42

  • 004

    bracket set, r. fr. sub-frame (fr)

    • Part Number: 04606-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $71.05

  • 005

    panel set, l. fr. bulkhead

    • Part Number: 04611-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $127.45

  • 006

    bracket set, l. fr. sub-frame (fr)

    • Part Number: 04616-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $68.95

  • 007

    wheelhouse sub-set, l. fr.

    • Part Number: 04652-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $50.70

  • 008

    extn set r,fr w/h

    • Part Number: 04674-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $228.15

  • 009

    extension set, l. fr. wheelhouse

    • Part Number: 04684-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $230.60

  • 010

    bulkhead, fr.

    • Part Number: 60400-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $294.60

  • 011

    gusset, r. fr. bulkhead side stay

    • Part Number: 60415-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $7.45

  • 012

    gusset, l. fr. bulkhead side stay

    • Part Number: 60465-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $7.45

  • 013

    member, r. fr. wheelhouse (upper)

    • Part Number: 60610-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $48.27

  • 014

    wheelhouse, r. fr.

    • Part Number: 60611-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $22.65

  • 015

    base set, battery setting

    • Part Number: 60630-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $61.03

  • 016

    bracket, r. fr. bumper extension

    • Part Number: 60638-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $58.90

  • 017

    gusset b, r. fr. shock absorber extension

    • Part Number: 60639-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $8.68

  • 018

    hsg comp set,r fr

    • Part Number: 60650-TR3-405ZZ

    '' '


    KA - US - 49 State Spec

    • $266.78

  • 019

    separator, r. fr. wheelhouse member (upper)

    • Part Number: 60659-TR0-A01

    '' '


    KA - US - 49 State Spec

    • $1.22

  • 020

    member, l. fr. wheelhouse (upper)

    • Part Number: 60710-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $48.27

  • 022

    gusset b, l. fr. shock absorber extension

    • Part Number: 60739-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $12.98

  • 023

    housing, l. fr. shock absorber

    • Part Number: 60750-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $168.98

  • 024

    frame, r. fr. side

    • Part Number: 60810-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $279.63

  • 025

    flange, r. fr. bumper beam extension

    • Part Number: 60819-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $14.43

  • 026

    support, r. fr. side frame

    • Part Number: 60847-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $16.88

  • 027

    frame, l. fr. side

    • Part Number: 60910-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $320.82

  • 028

    flange, l. fr. bumper beam extension

    • Part Number: 60919-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $14.43

  • 029

    support, l. fr. side frame

    • Part Number: 60947-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $16.88

  • 030

    dashboard (upper)

    • Part Number: 61100-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $206.92

  • 031

    bracket, fr. fender (rr)

    • Part Number: 61124-TR0-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $11.33

  • 032

    lid, dashboard (upper)

    • Part Number: 61130-TR0-A00

    '' '


    KA - US - 49 State Spec

    • $62.17

  • 033

    gusset, r. dashboard (upper)

    • Part Number: 61191-TR0-A00

    '' '


    KA - US - 49 State Spec

    • $3.18

  • 034

    gusset, l. dashboard (upper)

    • Part Number: 61195-TR0-A00

    '' '


    KA - US - 49 State Spec

    • $3.18

  • 035

    dashboard (lower)

    • Part Number: 61500-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $270.53

  • 035

    dashboard (lower)

    • Part Number: 61500-TR3-A10ZZ

    '' '


    KA - US - 49 State Spec

    • $271.83

  • 035

    dashboard (lower)

    • Part Number: 61500-TR3-A00ZZ

    '' '


    KA - US - 49 State Spec

    • $270.53

  • 035

    dashboard (lower)

    • Part Number: 61500-TR3-A10ZZ

    '' '


    KA - US - 49 State Spec

    • $271.83

  • 036

    bolt-washer (8mm)

    • Part Number: 90101-S6A-000

    '' '


    KA - US - 49 State Spec

    • $2.55

  • 037

    bolt-washer (8x20)

    • Part Number: 90105-SV1-000

    '' '


    KA - US - 49 State Spec

    • $0.30

  • 037

    bolt-washer (8x21)

    • Part Number: 90110-SE7-000

    '' '


    KA - US - 49 State Spec

    • $1.23

  • 037

    bolt-washer (8x20)

    • Part Number: 90105-SV1-000

    '' '


    KA - US - 49 State Spec

    • $0.30

  • 037

    bolt-washer (8x21)

    • Part Number: 90110-SE7-000

    '' '


    KA - US - 49 State Spec

    • $1.23

  • 038

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '' '


    KA - US - 49 State Spec

    • $0.30

  • 039

    bolt, flange (8x17) (black)

    • Part Number: 90178-TR0-A00

    '' '


    KA - US - 49 State Spec

    • $2.80

  • 040

    nut, paint cutting (6mm)

    • Part Number: 90301-SV7-000

    '' '


    KA - US - 49 State Spec

    • $3.03

  • 041

    rivet, vin plate

    • Part Number: 90671-SHJ-A02

    '' '


    KA - US - 49 State Spec

    • $0.48

  • 042

    bolt-washer (6x12)

    • Part Number: 93404-06012-07

    '' '


    KA - US - 49 State Spec

    • $0.88

  • 043

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '' '


    KA - US - 49 State Spec

    • $1.02

  • 044

    bolt-washer (8x16)

    • Part Number: 93406-08016-07

    '' '


    KA - US - 49 State Spec

    • $1.05
