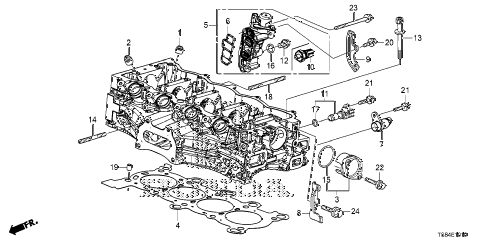

2012 civic DX 2 DOOR 5MT SPOOL VALVE (1.8L) diagram
Back to Top
seal a, valve stem (nok)seal b, valve stem (nok)cover, camshaft thrustgasket, cylinder head (nippon leakless)valve assy., spoolfilter assy., spool valvejoint, egrstay c, engine wire harnessstay d, engine wire harnessswitch assy., valve timing oilpressuresensor assy., tdcbolt-washer (11x176)bolt, stud (8x25)o-ring (46.8x2.2) (nok)o-ring (13x1.5)o-ring (15x1.9)bolt, stud (8x32)pin, dowel (14x20)bolt, flange (6x12)bolt, flange (6x16)bolt, flange (6x16)bolt, flange (6x20)bolt, flange (6x55)bolt, flange (8x16)
