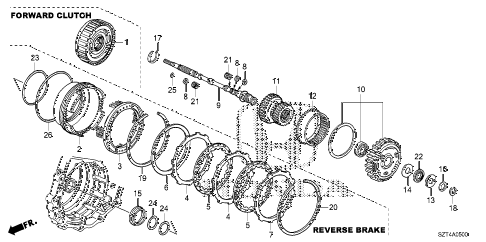

• 001

    clutch assy., forward

    • Part Number: 22500-RBL-003

    '


    KA - US - 49 State Spec

    • $507.93

  • 002

    piston, reverse brake

    • Part Number: 22533-PWR-010

    '


    KA - US - 49 State Spec

    • $39.42

  • 003

    spring, reverse return

    • Part Number: 22540-PWR-000

    '


    KA - US - 49 State Spec

    • $29.60

  • 004

    plate, reverse brake

    • Part Number: 22544-P4V-003

    '


    KA - US - 49 State Spec

    • $17.83

  • 005

    disk, reverse brake

    • Part Number: 22545-PWR-013

    '


    KA - US - 49 State Spec

    • $25.43

  • 006

    spring, reverse brake disk

    • Part Number: 22546-P4V-020

    '


    KA - US - 49 State Spec

    • $26.82

  • 007

    plate, reverse brake end (2) (3.8mm)

    • Part Number: 22552-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (3.9mm) (b)

    • Part Number: 22552-PWR-003

    '


    KA - US - 49 State Spec

    • $15.80

  • 007

    plate, reverse brake end (3) (4.0mm)

    • Part Number: 22553-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (4.1mm) (c)

    • Part Number: 22553-PWR-003

    '


    KA - US - 49 State Spec

    • $15.80

  • 007

    plate, reverse brake end (4) (4.2mm)

    • Part Number: 22554-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (4.3mm) (d)

    • Part Number: 22554-PWR-003

    '


    KA - US - 49 State Spec

    • $15.80

  • 007

    plate, reverse brake end (5) (4.4mm)

    • Part Number: 22555-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (4.5mm) (e)

    • Part Number: 22555-PWR-003

    '


    KA - US - 49 State Spec

    • $15.80

  • 007

    plate, reverse brake end (6) (4.6mm)

    • Part Number: 22556-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (4.7mm) (f)

    • Part Number: 22556-PWR-003

    '


    KA - US - 49 State Spec

    • $15.80

  • 007

    plate, reverse brake end (7) (4.8mm)

    • Part Number: 22557-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 007

    plate, reverse brake end (8) (5.0mm)

    • Part Number: 22558-P4V-003

    '


    KA - US - 49 State Spec

    • $24.08

  • 008

    ring, seal

    • Part Number: 22816-P4V-003

    '


    KA - US - 49 State Spec

    • $7.30

  • 009

    shaft, input

    • Part Number: 23210-RPS-000

    '


    KA - US - 49 State Spec

    • $189.85

  • 010

    gear, planetary

    • Part Number: 23500-RBL-000

    '


    KA - US - 49 State Spec

    • $207.33

  • 011

    gear, sun

    • Part Number: 23511-RBL-000

    '


    KA - US - 49 State Spec

    • $90.52

  • 012

    gear, ring

    • Part Number: 23531-RBL-000

    '


    KA - US - 49 State Spec

    • $105.57

  • 013

    washer, thrust (25x41.5x2.5)

    • Part Number: 90403-PLY-000

    '


    KA - US - 49 State Spec

    • $4.70

  • 014

    washer, thrust (25x41.5x1)

    • Part Number: 90405-P4V-000

    '


    KA - US - 49 State Spec

    • $5.47

  • 015

    retainer, circlip

    • Part Number: 90436-P4V-000

    '


    KA - US - 49 State Spec

    • $4.30

  • 016

    shim a (25x31) (1.05)

    • Part Number: 90451-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim b (25x31) (1.12)

    • Part Number: 90452-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim c (25x31) (1.19)

    • Part Number: 90453-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim d (25x31) (1.26)

    • Part Number: 90454-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim e (25x31) (1.33)

    • Part Number: 90455-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim f (25x31) (1.40)

    • Part Number: 90456-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim g (25x31) (1.47)

    • Part Number: 90457-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim h (25x31) (1.54)

    • Part Number: 90458-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim i (25x31) (1.61)

    • Part Number: 90459-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim j (25x31) (1.68)

    • Part Number: 90460-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim k (25x31) (1.75)

    • Part Number: 90461-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim l (25x31) (1.82)

    • Part Number: 90462-P4V-000

    '


    KA - US - 49 State Spec

    • $6.63

  • 016

    shim m (25x31) (1.08)

    • Part Number: 90480-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim n (25x31) (1.15)

    • Part Number: 90481-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim o (25x31) (1.22)

    • Part Number: 90482-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim p (25x31) (1.29)

    • Part Number: 90483-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim q (25x31) (1.36)

    • Part Number: 90484-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim r (25x31) (1.43)

    • Part Number: 90485-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim s (25x31) (1.50)

    • Part Number: 90486-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim t (25x31) (1.57)

    • Part Number: 90487-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim u (25x31) (1.64)

    • Part Number: 90488-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim v (25x31) (1.71)

    • Part Number: 90489-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 016

    shim w (25x31) (1.78)

    • Part Number: 90490-P4V-000

    '


    KA - US - 49 State Spec

    • $7.18

  • 017

    circlip, outer (35mm)

    • Part Number: 90606-P4V-000

    '


    KA - US - 49 State Spec

    • $3.13

  • 018

    circlip, outer (25mm)

    • Part Number: 90612-P4V-000

    '


    KA - US - 49 State Spec

    • $3.13

  • 019

    circlip, inner (150mm)

    • Part Number: 90613-P4V-000

    '


    KA - US - 49 State Spec

    • $6.20

  • 020

    circlip, inner (150mm)

    • Part Number: 90614-RLS-000

    '


    KA - US - 49 State Spec

    • $6.05

  • 021

    bearing, needle (20x24x17)

    • Part Number: 91104-P4V-013

    '


    KA - US - 49 State Spec

    • $14.35

  • 022

    bearing, thrust needle (25x24x17)

    • Part Number: 91131-P4V-003

    '


    KA - US - 49 State Spec

    • $15.08

  • 023

    o-ring (86.6x2.3) (nok)

    • Part Number: 91304-PWR-003

    '


    KA - US - 49 State Spec

    • $5.33

  • 024

    o-ring (31.2x1.9) (arai)

    • Part Number: 91307-PA9-003

    '


    KA - US - 49 State Spec

    • $2.68

  • 025

    ring, seal

    • Part Number: 91311-P4V-004

    '


    KA - US - 49 State Spec

    • $3.47

  • 026

    o-ring (135x2.5) (arai)

    • Part Number: 91312-P4V-004

    '


    KA - US - 49 State Spec

    • $7.73
