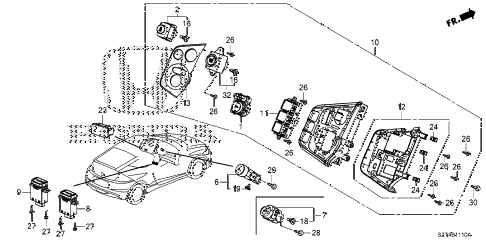

2012 cr-z EX 3 DOOR CVT SWITCH diagram

  • 001

    switch assy., remote control mirror

    Part Number: 35190-SWA-A02

    ''


    KA - US - 49 State Spec

    • $24.68

  • 002

    switch assy., vsa off

    Part Number: 35300-SZT-003

    ''


    KA - US - 49 State Spec

    • $36.80

  • 007

    switch assy., hazard

    Part Number: 35510-SZT-A01

    ''


    KA - US - 49 State Spec

    • $37.67

  • 010

    switch assy., mode select *b179l*

    Part Number: 35720-SZT-A01ZA
    (ROYAL INDIGO METALLIC)

    ''


    KA - US - 49 State Spec

    • $375.52

  • 010

    switch assy., mode select *nh806l*

    Part Number: 35720-SZT-A01ZB
    (BLACK GUNMETAL PEARL)

    ''


    KA - US - 49 State Spec

    • $397.70

  • 011

    switch, mode

    Part Number: 35721-SZT-G01

    ''


    KA - US - 49 State Spec

    • $184.13

  • 012

    cover, l. (lower)

    Part Number: 35722-SZT-G01

    ''


    KA - US - 49 State Spec

    • $22.43

  • 013

    panel, l.

    Part Number: 35723-SZT-G01

    ''


    KA - US - 49 State Spec

    • $27.33

  • 016

    bulb (14v 80ma)

    Part Number: 35851-SZT-003

    ''


    KA - US - 49 State Spec

    • $5.90

  • 018

    bulb, neo-wedge (14v 65ma)

    Part Number: 35871-SZT-L61

    ''


    KA - US - 49 State Spec

    • $5.75

  • 023

    lid, switch hole *nh167l*

    Part Number: 77196-SWA-G01ZC
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $6.25

  • 023

    lid, switch hole *nh643l*

    Part Number: 77196-SWA-G01ZD
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $6.25

  • 024

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    ''


    KA - US - 49 State Spec

    • $0.53

  • 026

    screw, tapping (3x10)

    Part Number: 93901-32220

    ''


    KA - US - 49 State Spec

    • $0.58

  • 028

    screw, tapping (4x12)

    Part Number: 93913-14220

    ''


    KA - US - 49 State Spec

    • $0.58

  • 030

    screw, tapping (4x16) (po)

    Part Number: 93913-14420

    ''


    KA - US - 49 State Spec

    • $0.58

  • 032

    switch assy., km/h-mph change

    Part Number: 35360-SZT-A01

    ''


    KA - US - 49 State Spec

    • $36.80
