INSTRUMENT PANEL
View large diagramHide diagramView diagramView printable catalogTranslate

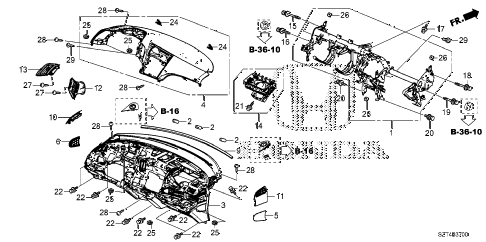

2012 cr-z EX 3 DOOR CVT INSTRUMENT PANEL diagram

  • 001

    beam, steering hanger

    Part Number: 61310-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $431.32

  • 002

    cap, instrument panel stay

    Part Number: 66844-SA7-000

    ''


    KA - US - 49 State Spec

    • $12.00

  • 003

    panel, instrument *nh167l*

    Part Number: 77100-SZT-G00ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $835.08

  • 003

    panel, instrument (typez)

    Part Number: 77100-SZT-G00ZB

    ''


    KA - US - 49 State Spec

    • $835.08

  • 004

    panel set, instrument (upper) *nh167l*

    Part Number: 77190-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $528.53

  • 004

    panel set *nh167l*

    Part Number: 77190-SZT-G02ZA

    ''


    KA - US - 49 State Spec

    • $528.53

  • 005

    lid, r. instrument side *nh643l*

    Part Number: 77210-SZT-A01ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 005

    lid, r. instrument side *nh167l*

    Part Number: 77210-SZT-A01ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 006

    lid, l. instrument side *nh643l*

    Part Number: 77215-SZT-A01ZA
    (LIGHT GRAY)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 006

    lid, l. instrument side *nh167l*

    Part Number: 77215-SZT-A01ZB
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $4.63

  • 009

    seal, fr. instrument

    Part Number: 77466-SMA-000

    ''


    KA - US - 49 State Spec

    • $13.12

  • 010

    garnish, defroster *nh167l* (driver side)

    Part Number: 77470-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $13.18

  • 011

    garnish, defroster *nh167l* (passenger side)

    Part Number: 77475-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $13.18

  • 012

    outlet assy., driver inside *nh167l*

    Part Number: 77610-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $40.43

  • 013

    outlet assy., driver (outer) *nh167l*

    Part Number: 77620-SZT-G01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $57.40

  • 014

    module assy., passenger

    Part Number: 77820-SZT-A80

    ''


    KA - US - 49 State Spec

    • $1,198.38

  • 015

    bolt-washer (8x86)

    Part Number: 90106-S3N-000

    ''


    KA - US - 49 State Spec

    • $3.15

  • 016

    bolt-washer (8x40)

    Part Number: 90106-S5H-000

    ''


    KA - US - 49 State Spec

    • $4.30

  • 017

    bolt-washer (6x15)

    Part Number: 90108-SF1-000

    ''


    KA - US - 49 State Spec

    • $0.38

  • 018

    bolt-washer (8x99)

    Part Number: 90111-SCC-003

    ''


    KA - US - 49 State Spec

    • $4.57

  • 019

    bolt-washer (8x57)

    Part Number: 90111-SVA-A00

    ''


    KA - US - 49 State Spec

    • $5.02

  • 020

    bolt, special (6x14)

    Part Number: 90113-SAA-003

    ''


    KA - US - 49 State Spec

    • $2.27

  • 021

    bolt, flange (6x20) (adhesive)

    Part Number: 90134-SFA-N81

    ''


    KA - US - 49 State Spec

    • $2.93

  • 022

    bolt-washer (5x18)

    Part Number: 90140-SH3-003

    ''


    KA - US - 49 State Spec

    • $4.88

  • 024

    clip, snap fitting (po)(natural)

    Part Number: 90666-SDA-A01

    ''


    KA - US - 49 State Spec

    • $0.65

  • 025

    grommet, screw (4mm)

    Part Number: 91640-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.85

  • 026

    grommet, screw (4mm)

    Part Number: 91641-SM4-003

    ''


    KA - US - 49 State Spec

    • $2.85

  • 027

    screw, tapping (4x12)

    Part Number: 93903-34320

    ''


    KA - US - 49 State Spec

    • $0.65

  • 028

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KA - US - 49 State Spec

    • $0.65

  • 029

    screw, tapping (4x16) (po)

    Part Number: 93913-14420

    ''


    KA - US - 49 State Spec

    • $0.65
