FLOOR - INNER PANEL
View large diagramHide diagramView diagramView printable catalogTranslate

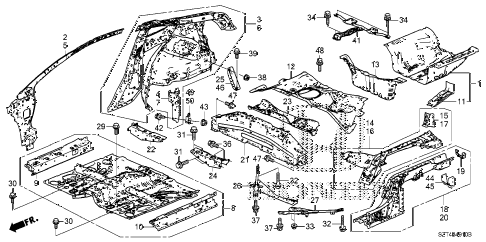

2012 cr-z EX 3 DOOR CVT FLOOR - INNER PANEL diagram

  • 001

    panel set, rr. floor

    Part Number: 04655-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $603.12

  • 002

    pillar, r. fr. (inner)

    Part Number: 64115-SZT-A50ZZ

    ''


    KA - US - 49 State Spec

    • $326.85

  • 003

    panel, r. rr. inside

    Part Number: 64300-SZT-415ZZ

    ''


    KA - US - 49 State Spec

    • $731.20

  • 004

    plate, r. side sill end

    Part Number: 64320-SZT-305ZZ

    ''


    KA - US - 49 State Spec

    • $17.65

  • 005

    pillar, l. fr. (inner)

    Part Number: 64515-SZT-A50ZZ

    ''


    KA - US - 49 State Spec

    • $326.85

  • 006

    panel, l. rr. inside

    Part Number: 64700-SZT-416ZZ

    ''


    KA - US - 49 State Spec

    • $731.20

  • 007

    plate, l. side sill end

    Part Number: 64720-SZT-305ZZ

    ''


    KA - US - 49 State Spec

    • $17.65

  • 008

    floor, fr.

    Part Number: 65100-SZT-A01ZZ

    ''


    KA - US - 49 State Spec

    • $691.90

  • 009

    sill, r. fr. inside

    Part Number: 65140-SZT-A01ZZ

    ''


    KA - US - 49 State Spec

    • $113.85

  • 010

    sill, l. fr. inside

    Part Number: 65190-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $113.85

  • 011

    stiffener, rr. jack

    Part Number: 65513-SZT-G00ZZ

    ''


    KA - US - 49 State Spec

    • $57.07

  • 012

    floor, fr. middle

    Part Number: 65531-TM8-A00ZZ

    ''


    KA - US - 49 State Spec

    • $165.07

  • 013

    floor, rr. middle

    Part Number: 65532-TM8-A00ZZ

    ''


    KA - US - 49 State Spec

    • $92.87

  • 014

    stiffener, r. rr. frame (upper)

    Part Number: 65540-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $155.42

  • 015

    gusset, r. rr. frame end (upper)

    Part Number: 65545-SZT-G00ZZ

    ''


    KA - US - 49 State Spec

    • $10.40

  • 016

    stiffener, l. rr. frame (upper)

    Part Number: 65590-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $155.42

  • 017

    gusset, l. rr. frame end (upper)

    Part Number: 65595-SZT-G00ZZ

    ''


    KA - US - 49 State Spec

    • $10.40

  • 018

    frame, r. rr.

    Part Number: 65610-SZT-A01ZZ

    ''


    KA - US - 49 State Spec

    • $467.47

  • 019

    flange, rr. frame end

    Part Number: 65622-TM8-A00ZZ

    ''


    KA - US - 49 State Spec

    • $8.45

  • 020

    frame, l. rr.

    Part Number: 65660-SZT-A01ZZ

    ''


    KA - US - 49 State Spec

    • $467.47

  • 021

    crossmember, middle floor

    Part Number: 65700-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $294.77

  • 022

    gusset, r. middle crossmember

    Part Number: 65715-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $62.42

  • 023

    crossmember, rr. floor

    Part Number: 65750-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $106.40

  • 024

    gusset, l. middle crossmember

    Part Number: 65765-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $62.42

  • 025

    gusset, rr. wheelhouse

    Part Number: 74625-TM8-A00ZZ

    ''


    KA - US - 49 State Spec

    • $11.58

  • 026

    rod r, trailing arm performance

    Part Number: 74630-SZT-G00

    ''


    KA - US - 49 State Spec

    • $83.20

  • 027

    rod l, trailing arm performance

    Part Number: 74640-SZT-G00

    ''


    KA - US - 49 State Spec

    • $69.37

  • 029

    bolt, flange (10x20)

    Part Number: 90101-SFA-000

    ''


    KA - US - 49 State Spec

    • $2.20

  • 030

    bolt, flange (8x16)

    Part Number: 90108-SJA-A00

    ''


    KA - US - 49 State Spec

    • $2.50

  • 031

    bolt, flange (14x28)

    Part Number: 90162-TF0-000

    ''


    KA - US - 49 State Spec

    • $4.45

  • 032

    bolt, flange (10x41)

    Part Number: 90178-TF6-000

    ''


    KA - US - 49 State Spec

    • $4.12

  • 033

    nut, paint cutting (8mm)

    Part Number: 90361-S3C-003

    ''


    KA - US - 49 State Spec

    • $1.45

  • 034

    bolt-washer (8x20)

    Part Number: 93403-08020-08

    ''


    KA - US - 49 State Spec

    • $1.18

  • 036

    bolt-washer (10x20)

    Part Number: 93406-10020-08

    ''


    KA - US - 49 State Spec

    • $1.25

  • 037

    bolt-washer (10x25)

    Part Number: 93406-10025-08

    ''


    KA - US - 49 State Spec

    • $1.35

  • 038

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.27

  • 039

    bolt-washer (8x20)

    Part Number: 93404-08020-08

    ''


    KA - US - 49 State Spec

    • $1.08

  • 039

    bolt, flange (8x16)

    Part Number: 95701-08016-08

    ''


    KA - US - 49 State Spec

    • $1.02

  • 041

    beam, spare tire

    Part Number: 74610-SZT-A00

    ''


    KA - US - 49 State Spec

    • $99.17

  • 044

    gusset b, r. rr. frame

    Part Number: 65625-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $34.72

  • 045

    gusset b, l. rr. frame

    Part Number: 65675-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $26.02

  • 046

    gusset, rr. wheelhouse

    Part Number: 74625-SZT-A00ZZ

    ''


    KA - US - 49 State Spec

    • $13.90

  • 047

    bolt, flange (8x16)

    Part Number: 90108-SJA-A00

    ''


    KA - US - 49 State Spec

    • $2.50

  • 048

    bolt, flange (7/16")

    Part Number: 90135-S1F-003

    ''


    KA - US - 49 State Spec

    • $2.20
