SPOOL VALVE
View large diagramHide diagramView diagramView printable catalogTranslate

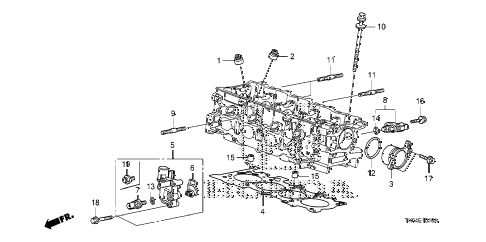

2012 fit FIT(SAYAMA PLANT) 5 DOOR 5MT SPOOL VALVE diagram

  • 001

    seal a, valve stem (nok)

    Part Number: 12210-PZ1-004

    ''


    KA - US - 49 State Spec

    • $2.11

  • 002

    seal b, valve stem (nok)

    Part Number: 12211-PZ1-004

    ''


    KA - US - 49 State Spec

    • $2.11

  • 003

    cover, cam thrust

    Part Number: 12230-RB0-000

    ''


    KA - US - 49 State Spec

    • $21.40

  • 004

    gasket, cylinder head (nippon leakless)

    Part Number: 12251-RB0-004

    ''


    KA - US - 49 State Spec

    • $79.90

  • 005

    valve assy., spool

    Part Number: 15810-RB0-G01

    ''


    KA - US - 49 State Spec

    • $258.68

  • 006

    filter assy., spool valve

    Part Number: 15825-RB0-003

    ''


    KA - US - 49 State Spec

    • $50.25

  • 007

    switch assy., valve timing oilpressure

    Part Number: 37250-PNE-G01

    ''


    KA - US - 49 State Spec

    • $96.18

  • 008

    sensor assy., tdc

    Part Number: 37510-RB0-003

    ''


    KA - US - 49 State Spec

    • $129.81

  • 009

    bolt, stud (8x25)

    Part Number: 92900-08025-1B

    ''


    KA - US - 49 State Spec

    • $1.62

  • 010

    bolt-washer (9x155)

    Part Number: 90008-PWA-003

    ''


    KA - US - 49 State Spec

    • $7.50

  • 011

    bolt, stud (8x22)

    Part Number: 90026-RMX-000

    ''


    KA - US - 49 State Spec

    • $2.77

  • 012

    o-ring (46.8x2.2) (nok)

    Part Number: 91302-PX4-004

    ''


    KA - US - 49 State Spec

    • $5.33

  • 013

    o-ring (13x1.5)

    Part Number: 91319-PAA-A01

    ''


    KA - US - 49 State Spec

    • $3.35

  • 014

    o-ring (15x1.9)

    Part Number: 91333-PNA-003

    ''


    KA - US - 49 State Spec

    • $2.40

  • 015

    pin, dowel (14x20)

    Part Number: 94301-14200

    ''


    KA - US - 49 State Spec

    • $1.72

  • 016

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KA - US - 49 State Spec

    • $1.17

  • 017

    bolt, flange (6x20)

    Part Number: 95701-06020-08

    ''


    KA - US - 49 State Spec

    • $0.32

  • 018

    bolt, flange (6x45)

    Part Number: 95701-06045-08

    ''


    KA - US - 49 State Spec

    • $1.58
