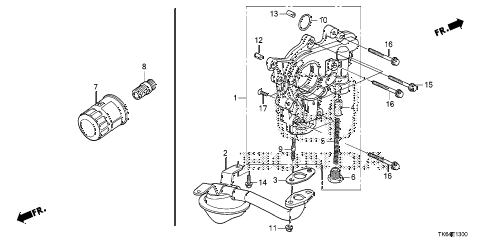

OIL PUMP - OIL STRAINER - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: pump assy., oil Part Number: 15100-RB0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $135.87

Ref #: 002	Honda Part: strainer, oil Part Number: 15220-RB1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $31.02

Ref #: 003	Honda Part: gasket, oil strainer Part Number: 15221-PZ1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.65

Ref #: 004	Honda Part: valve, relief Part Number: 15231-413-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $12.12

Ref #: 004	Honda Part: valve, relief Part Number: 15231-R3R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.27

Ref #: 005	Honda Part: spring, relief valve Part Number: 15232-PHM-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.47

Ref #: 006	Honda Part: bolt, sealing (18mm) Part Number: 15233-PFB-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.68

Ref #: 007	Honda Part: filter, oil (filtech toyo roki) Part Number: 15400-PLM-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.04

Ref #: 008	Honda Part: holder, oil filter Part Number: 90015-PH1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.80

Ref #: 009	Honda Part: bolt, stud (6x28) Part Number: 90041-PA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.87

Ref #: 009	Honda Part: bolt, stud (6x28) Part Number: 90042-PR3-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.60

Ref #: 010	Honda Part: o-ring (24.4x2.4) (nok) Part Number: 91326-PF4-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.30

Ref #: 011	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.23

Ref #: 012	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.17

Ref #: 013	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.13

Ref #: 014	Honda Part: bolt, flange (6x14) Part Number: 95701-06014-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.85

Ref #: 015	Honda Part: bolt, flange (6x25) Part Number: 95701-06025-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.90

Ref #: 016	Honda Part: bolt, flange (6x35) Part Number: 95701-06035-08 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.61

Ref #: 017	Honda Part: screw, flat (6x16) Part Number: 93600-06016-0A Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.58

Ref #: 001	Honda Part: pump assy., oil Part Number: 15100-RB0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$135.87

Ref #: 002	Honda Part: strainer, oil Part Number: 15220-RB1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$31.02

Ref #: 003	Honda Part: gasket, oil strainer Part Number: 15221-PZ1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.65

Ref #: 004	Honda Part: valve, relief Part Number: 15231-413-020 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$12.12

Ref #: 004	Honda Part: valve, relief Part Number: 15231-R3R-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.27

Ref #: 005	Honda Part: spring, relief valve Part Number: 15232-PHM-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.47

Ref #: 006	Honda Part: bolt, sealing (18mm) Part Number: 15233-PFB-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.68

Ref #: 007	Honda Part: filter, oil (filtech toyo roki) Part Number: 15400-PLM-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.04

Ref #: 008	Honda Part: holder, oil filter Part Number: 90015-PH1-013 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.80

Ref #: 009	Honda Part: bolt, stud (6x28) Part Number: 90041-PA5-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.87

Ref #: 009	Honda Part: bolt, stud (6x28) Part Number: 90042-PR3-000 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.60

Ref #: 010	Honda Part: o-ring (24.4x2.4) (nok) Part Number: 91326-PF4-004 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.30

Ref #: 011	Honda Part: nut, flange (6mm) Part Number: 94050-06080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.23

Ref #: 012	Honda Part: pin, dowel (6x10) Part Number: 94301-06100 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.17

Ref #: 013	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.13

Ref #: 014	Honda Part: bolt, flange (6x14) Part Number: 95701-06014-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.85

Ref #: 015	Honda Part: bolt, flange (6x25) Part Number: 95701-06025-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.90

Ref #: 016	Honda Part: bolt, flange (6x35) Part Number: 95701-06035-08 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.61

Ref #: 017	Honda Part: screw, flat (6x16) Part Number: 93600-06016-0A Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.58
