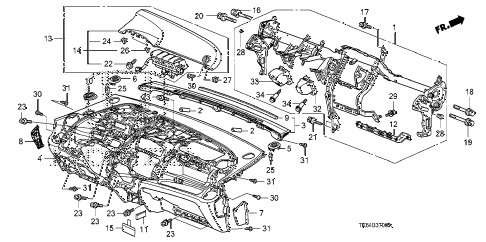

INSTRUMENT PANEL - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: beam, steering hanger Part Number: 61310-TK6-A00ZZ Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $296.02

Ref #: 002	Honda Part: cap, instrument panel stay Part Number: 66844-SA7-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $9.25

Ref #: 003	Honda Part: garnish assy., fr. defroster nh167l Part Number: 77102-TF0-901ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $41.08

Ref #: 004	Honda Part: panel, instrument nh167l Part Number: 77103-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $401.39

Ref #: 005	Honda Part: lid, r. tweeter nh167l Part Number: 77131-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.70

Ref #: 006	Honda Part: lid, l. tweeter nh167l Part Number: 77136-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.70

Ref #: 007	Honda Part: lid, r. instrument side nh167l Part Number: 77211-TF0-000ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.90

Ref #: 008	Honda Part: lid, l. instrument side nh167l Part Number: 77216-TF0-000ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.90

Ref #: 009	Honda Part: seal, fr. instrument Part Number: 77466-TF0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.57

Ref #: 010	Honda Part: garnish assy., defroster nh167l (driver side) Part Number: 77470-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.42

Ref #: 011	Honda Part: seal, side Part Number: 77481-ST0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.92

Ref #: 012	Honda Part: frame, glove box Part Number: 77550-TK6-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $14.55

Ref #: 013	Honda Part: module assy., passenger nh167l Part Number: 77820-TK6-A80ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1,007.65

Ref #: 014	Honda Part: lid set, passenger nh167l Part Number: 77821-TG0-K81ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $220.08

Ref #: 015	Honda Part: tag, passenger srs caution Part Number: 78527-S0X-A11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.32

Ref #: 016	Honda Part: bolt-washer (8x86) Part Number: 90106-S3N-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.37

Ref #: 017	Honda Part: bolt-washer (6x15) Part Number: 90108-SF1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.28

Ref #: 018	Honda Part: bolt-washer (8x82) Part Number: 90111-SAA-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.05

Ref #: 019	Honda Part: bolt-washer (8x99) Part Number: 90111-SCC-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.47

Ref #: 020	Honda Part: bolt-washer (8x62) Part Number: 90112-SAA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.05

Ref #: 021	Honda Part: bolt, special (6x14) Part Number: 90113-SAA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.72

Ref #: 022	Honda Part: bolt, flange (6x20) (adhesive) Part Number: 90134-SFA-N81 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.17

Ref #: 023	Honda Part: bolt-washer (5x18) Part Number: 90140-SH3-003 Standard Qty.: 010 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.70

Ref #: 024	Honda Part: clip, snap fitting (po)(natural) Part Number: 90666-SDA-A01 Standard Qty.: 015 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.50

Ref #: 025	Honda Part: clip, fitting Part Number: 90666-SD4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.17

Ref #: 026	Honda Part: clip, snap fitting (po)(orange) Part Number: 90666-TA0-A11 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.05

Ref #: 027	Honda Part: grommet, screw (4mm) Part Number: 91640-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.38

Ref #: 028	Honda Part: grommet, screw (4mm) Part Number: 91641-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.38

Ref #: 029	Honda Part: bolt-washer (5x12) Part Number: 93404-05012-07 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.87

Ref #: 030	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14420 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.55

Ref #: 001	Honda Part: beam, steering hanger Part Number: 61310-TK6-A00ZZ Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$296.02

Ref #: 002	Honda Part: cap, instrument panel stay Part Number: 66844-SA7-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$9.25

Ref #: 003	Honda Part: garnish assy., fr. defroster nh167l Part Number: 77102-TF0-901ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$41.08

Ref #: 004	Honda Part: panel, instrument nh167l Part Number: 77103-TF0-G01ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$401.39

Ref #: 005	Honda Part: lid, r. tweeter nh167l Part Number: 77131-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.70

Ref #: 006	Honda Part: lid, l. tweeter nh167l Part Number: 77136-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.70

Ref #: 007	Honda Part: lid, r. instrument side nh167l Part Number: 77211-TF0-000ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.90

Ref #: 008	Honda Part: lid, l. instrument side nh167l Part Number: 77216-TF0-000ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.90

Ref #: 009	Honda Part: seal, fr. instrument Part Number: 77466-TF0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.57

Ref #: 010	Honda Part: garnish assy., defroster nh167l (driver side) Part Number: 77470-TF0-G00ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.42

Ref #: 011	Honda Part: seal, side Part Number: 77481-ST0-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.92

Ref #: 012	Honda Part: frame, glove box Part Number: 77550-TK6-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$14.55

Ref #: 013	Honda Part: module assy., passenger nh167l Part Number: 77820-TK6-A80ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1,007.65

Ref #: 014	Honda Part: lid set, passenger nh167l Part Number: 77821-TG0-K81ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$220.08

Ref #: 015	Honda Part: tag, passenger srs caution Part Number: 78527-S0X-A11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.32

Ref #: 016	Honda Part: bolt-washer (8x86) Part Number: 90106-S3N-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.37

Ref #: 017	Honda Part: bolt-washer (6x15) Part Number: 90108-SF1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.28

Ref #: 018	Honda Part: bolt-washer (8x82) Part Number: 90111-SAA-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.05

Ref #: 019	Honda Part: bolt-washer (8x99) Part Number: 90111-SCC-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.47

Ref #: 020	Honda Part: bolt-washer (8x62) Part Number: 90112-SAA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.05

Ref #: 021	Honda Part: bolt, special (6x14) Part Number: 90113-SAA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.72

Ref #: 022	Honda Part: bolt, flange (6x20) (adhesive) Part Number: 90134-SFA-N81 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.17

Ref #: 023	Honda Part: bolt-washer (5x18) Part Number: 90140-SH3-003 Standard Qty.: 010 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.70

Ref #: 024	Honda Part: clip, snap fitting (po)(natural) Part Number: 90666-SDA-A01 Standard Qty.: 015 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.50

Ref #: 025	Honda Part: clip, fitting Part Number: 90666-SD4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.17

Ref #: 026	Honda Part: clip, snap fitting (po)(orange) Part Number: 90666-TA0-A11 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.05

Ref #: 027	Honda Part: grommet, screw (4mm) Part Number: 91640-SM4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.38

Ref #: 028	Honda Part: grommet, screw (4mm) Part Number: 91641-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.38

Ref #: 029	Honda Part: bolt-washer (5x12) Part Number: 93404-05012-07 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.87

Ref #: 030	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14420 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.55
