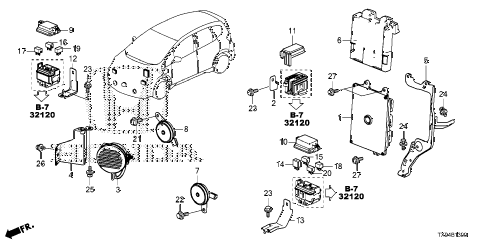

View large diagramHide diagramView diagramView printable catalog
  • 001

    control module, management powertrain

    • Part Number: 1K200-RDC-A02

    '


    KL - California Spec

    • $1,103.67

  • 002

    bracket, sub-fuse box

    • Part Number: 32161-TX9-A00

    '


    KL - California Spec

    • $16.93

  • 003

    speaker assy., audible

    • Part Number: 37450-TX9-A01

    '


    KL - California Spec

    • $38.97

  • 004

    bracket, audible speaker

    • Part Number: 37460-TX9-A00

    '


    KL - California Spec

    • $7.03

  • 005

    bracket, powertrain control module

    • Part Number: 37821-RB0-000

    '


    KL - California Spec

    • $11.97

  • 006

    cover, powertrain control module

    • Part Number: 37823-RB0-000

    '


    KL - California Spec

    • $9.08

  • 007

    horn assy. (low) (mitsuba)

    • Part Number: 38100-S7S-013

    '


    KL - California Spec

    • $48.88

  • 008

    horn assy. (high)

    • Part Number: 38150-SLA-013

    '


    KL - California Spec

    • $38.47

  • 009

    cover, relay block (upper) (3p)

    • Part Number: 38182-TF0-003

    '


    KL - California Spec

    • $7.52

  • 010

    cover, relay block (upper) (4p)

    • Part Number: 38182-TM8-003

    '


    KL - California Spec

    • $13.15

  • 011

    cover, sub-fuse box (upper)

    • Part Number: 38183-TX9-A01

    '


    KL - California Spec

    • $17.82

  • 012

    bracket, multi relay block

    • Part Number: 38186-SZT-000

    '


    KL - California Spec

    • $7.70

  • 013

    bracket, multi relay box (l. side)

    • Part Number: 38186-TF0-000

    '


    KL - California Spec

    • $6.37

  • 014

    relay assy., power (5p) (micro iso) (mitsuba)

    • Part Number: 39794-S10-003

    '


    KL - California Spec

    • $25.17

  • 015

    relay assy., power (micro iso)(mitsuba)

    • Part Number: 39794-SDA-A05

    '


    KL - California Spec

    • $28.17

  • 021

    bolt, ground (8x16)

    • Part Number: 90150-S84-003

    '


    KL - California Spec

    • $0.90

  • 022

    bolt, ground (8x16)

    • Part Number: 90150-SLJ-003

    '


    KL - California Spec

    • $2.40

  • 023

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KL - California Spec

    • $0.93

  • 024

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KL - California Spec

    • $1.02

  • 025

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KL - California Spec

    • $1.02

  • 026

    screw-washer (5x12)

    • Part Number: 93893-05012-08

    '


    KL - California Spec

    • $0.80

  • 027

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KL - California Spec

    • $0.88

Back to Top
control module, management powertrainbracket, sub-fuse boxspeaker assy., audiblebracket, audible speakerbracket, powertrain control modulecover, powertrain control modulehorn assy. (low) (mitsuba)horn assy. (high)cover, relay block (upper) (3p)cover, relay block (upper) (4p)cover, sub-fuse box (upper)bracket, multi relay blockbracket, multi relay box (l. side)relay assy., power (5p) (micro iso) (mitsuba)relay assy., power (micro iso)(mitsuba)bolt, ground (8x16)bolt, ground (8x16)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x16)bolt-washer (6x16)bolt-washer (6x16)screw-washer (5x12)bolt, flange (6x16)bolt, flange (6x16)
