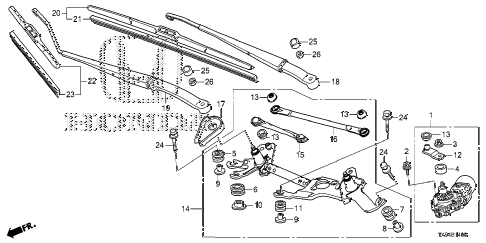

View large diagramHide diagramView diagramView printable catalog
  • 001

    motor, fr. wiper

    • Part Number: 76505-TK6-A01

    '


    KL - California Spec

    • $242.35

  • 002

    bolt-washer (6x14)

    • Part Number: 76506-S7A-004

    '


    KL - California Spec

    • $1.77

  • 003

    nut, hex. (8mm)

    • Part Number: 76511-SMA-004

    '


    KL - California Spec

    • $1.00

  • 004

    seal a

    • Part Number: 76515-SMA-004

    '


    KL - California Spec

    • $2.03

  • 005

    rubber c, mounting

    • Part Number: 76516-S7A-J11

    '


    KL - California Spec

    • $3.93

  • 006

    rubber b, mounting

    • Part Number: 76516-SFE-004

    '


    KL - California Spec

    • $2.00

  • 007

    rubber a, mounting

    • Part Number: 76516-SFE-J02

    '


    KL - California Spec

    • $2.10

  • 008

    collar a

    • Part Number: 76517-S7A-004

    '


    KL - California Spec

    • $2.27

  • 009

    collar c

    • Part Number: 76517-S7A-J11

    '


    KL - California Spec

    • $2.27

  • 010

    collar b

    • Part Number: 76517-SFE-004

    '


    KL - California Spec

    • $1.98

  • 011

    mount, rubber (d)

    • Part Number: 76517-TF0-004

    '


    KL - California Spec

    • $3.18

  • 012

    link assy. a

    • Part Number: 76520-SMA-004

    '


    KL - California Spec

    • $10.73

  • 013

    dust seal a

    • Part Number: 76524-S7A-004

    '


    KL - California Spec

    • $3.02

  • 014

    link, fr. wiper

    • Part Number: 76530-TK6-A01

    '


    KL - California Spec

    • $96.93

  • 015

    rod unit a

    • Part Number: 76540-TK6-A01

    '


    KL - California Spec

    • $8.07

  • 016

    rod unit b

    • Part Number: 76550-TK6-A01

    '


    KL - California Spec

    • $12.95

  • 017

    washer, pivot

    • Part Number: 76561-TF0-E01

    '


    KL - California Spec

    • $1.78

  • 018

    arm, windshield wiper (driver side)

    • Part Number: 76600-TK6-A01

    '


    KL - California Spec

    • $49.72

  • 019

    arm, windshield wiper (passenger side)

    • Part Number: 76610-TK6-A01

    '


    KL - California Spec

    • $49.72

  • 020

    blade, windshield wiper (700mm)

    • Part Number: 76620-TK6-A01

    '


    KL - California Spec

    • $30.08

  • 021

    rubber, blade (700mm)

    • Part Number: 76622-TK6-A01

    '


    KL - California Spec

    • $6.15

  • 022

    blade, windshield wiper (350mm)

    • Part Number: 76630-TF0-G01

    '


    KL - California Spec

    • $21.07

  • 023

    rubber, blade (350mm)

    • Part Number: 76632-SMA-004

    '


    KL - California Spec

    • $5.63

  • 024

    bolt-washer (6x32)

    • Part Number: 90126-SR3-000

    '


    KL - California Spec

    • $0.85

  • 025

    cap, fr. wiper

    • Part Number: 91611-S5A-000

    '


    KL - California Spec

    • $0.45

  • 026

    nut, hex. (10mm)

    • Part Number: 94001-10080-0S

    '


    KL - California Spec

    • $0.82
