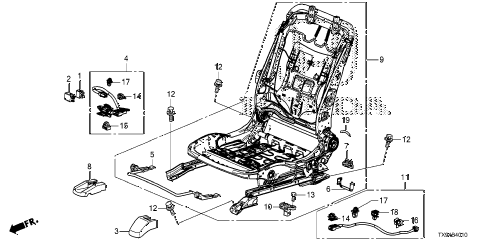

2013 fit STD 5 DOOR 1AT FRONT SEAT COMPONENTS (DRIVER SIDE) diagram
Back to Top
relay assy., power (micro iso)(mitsuba)relay assy., power (5p) (micro iso)cover, r. fr. seat foot (outer) *nh643l* (fr)cord, fr. seat cushion heaterlever, fr. seat cushioncap, slide adjuster end (lower)cap, slide adjuster end (upper)cover, l. fr. seat foot (inner) *nh643l* (fr)frame, l. fr. seatsensor, seat positioncord, fr. seat spsbolt-washer (10x27)bolt-washer (10x27)bolt-washer (10x27)bolt-washer (10x27)bolt (6x16)clip, connector (natural)clip, connector (natural)clip, relay holder (natural)clip, harness band (155.3mm) (black)clip, harness band (164.5mm) (dark blue)clip, harness band (164.5mm) (dark blue)clip b, holder band harness (129mm)protector a, edge
