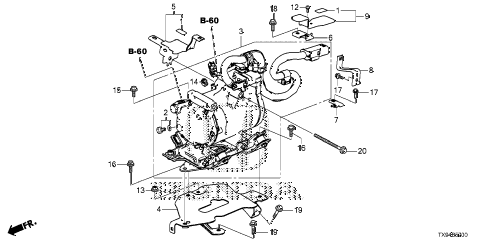

View large diagramHide diagramView diagramView printable catalog
  • 001

    label, caution

    • Part Number: 1K811-TX9-A00

    '


    KL - California Spec

    • $2.52

  • 002

    valve sub-assy., safety

    • Part Number: 38801-P9K-E01

    '


    KL - California Spec

    • N/A

  • 003

    compressor assy.

    • Part Number: 38810-TX9-A01

    '


    KL - California Spec

    • N/A

  • 004

    bracket a, compressor

    • Part Number: 38811-TX9-A00

    '


    KL - California Spec

    • $37.80

  • 005

    bracket, compressor (b)

    • Part Number: 38812-TX9-A01

    '


    KL - California Spec

    • $31.48

  • 006

    stay, compressor high voltage connecting cover

    • Part Number: 38866-TX9-A00

    '


    KL - California Spec

    • $6.20

  • 007

    stay, high voltage cable

    • Part Number: 38867-TX9-A00

    '


    KL - California Spec

    • $6.20

  • 008

    bracket, compressor connecting

    • Part Number: 38868-TX9-A00

    '


    KL - California Spec

    • $7.50

  • 009

    cover, compressor high voltageconnecting

    • Part Number: 38869-TX9-A01

    '


    KL - California Spec

    • $13.45

  • 012

    bolt-washer (6x12)

    • Part Number: 90010-RDC-A01

    '


    KL - California Spec

    • $3.78

  • 013

    nut, paint cutting (8mm)

    • Part Number: 90361-S3Y-003

    '


    KL - California Spec

    • $1.65

  • 014

    clip, connector (dark brown)

    • Part Number: 91535-TA0-003

    '


    KL - California Spec

    • $0.50

  • 015

    bolt-washer (8x12)

    • Part Number: 93401-08012-05

    '


    KL - California Spec

    • $0.97

  • 016

    bolt-washer (8x16)

    • Part Number: 93401-08016-05

    '


    KL - California Spec

    • $1.05

  • 017

    bolt, flange (6x12)

    • Part Number: 95701-06012-05

    '


    KL - California Spec

    • $0.88

  • 018

    bolt, flange (8x16)

    • Part Number: 95701-08016-05

    '


    KL - California Spec

    • $0.98

  • 019

    bolt, flange (8x20)

    • Part Number: 95701-08020-05

    '


    KL - California Spec

    • $1.02

  • 020

    bolt, flange (8x95)

    • Part Number: 95701-08095-05

    '


    KL - California Spec

    • $1.55

Back to Top
label, cautionlabel, cautionvalve sub-assy., safetycompressor assy.bracket a, compressorbracket, compressor (b)stay, compressor high voltage connecting coverstay, high voltage cablebracket, compressor connectingcover, compressor high voltageconnectingbolt-washer (6x12)nut, paint cutting (8mm)clip, connector (dark brown)bolt-washer (8x12)bolt-washer (8x16)bolt-washer (8x16)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (8x16)bolt, flange (8x20)bolt, flange (8x20)bolt, flange (8x95)
