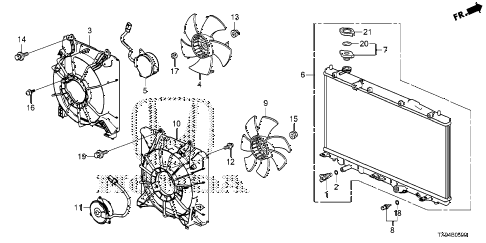

2014 fit STD 5 DOOR 1AT RADIATOR diagram
Back to Top
petcock, drain (toyo)gasket, drain (toyo)shroudfan, coolingmotor, cooling fanradiator (toyo)capsensor assy., water temperature (panasonic)fan, coolingshroud, air conditionermotor, cooling fanscrew-washer (4x11)nut, toothed (5mm)bolt-washer (6x20)nut, hex. (5mm) (denso)screw-washer (5x12)spacer, fano-ring (9.5x1.9) (panasonic)bolt-washer (6x16)label, radiator capcover, radiator cap (toyo)
