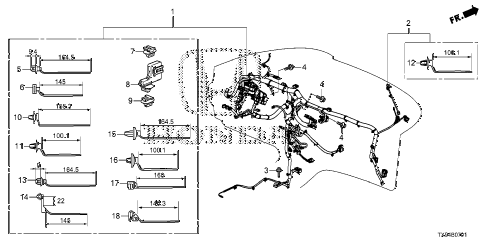

2014 fit STD 5 DOOR 1AT WIRE HARNESS (2) diagram
Back to Top
wire harness, instrumentsub-wire, sun beam sensorbolt, torx ground (6x20)bolt, ground (6x16) (washer 12.5mm) (zn)bolt, ground (6x16) (washer 12.5mm) (zn)bolt, ground (6x16) (washer 12.5mm) (zn)clip, harness band (164.5mm) (brown)clip, harness band (145mm) (natural)clip, connector (natural)clip, connector (natural)clip, connector (dark gray)clip, harness band (155.3mm) (black)clip, harness band (100.1mm) (natural)clip, harness band (164.5mm) (dark blue)band, harness offset (20) (145mm) (dark blue)clip, harness band (164.5mm) (dark blue)(w/seal)clip, harness band (100.1mm) (natural)(w/seal)clip, band (160mm) (natural)clip, harness band (140.3mm) (black)
