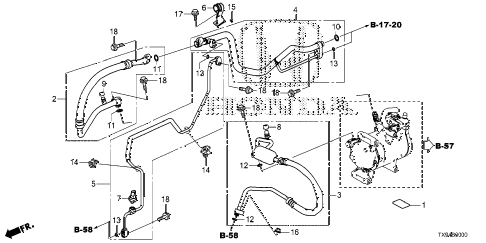

2014 fit STD 5 DOOR 1AT A/C HOSES - PIPES diagram
Back to Top
label, air conditionerlabel, air conditionerhose, suctionhose, dischargepipe, air conditionerpipe, receiverclamp, air conditioner pipesensor assy., pressure (denso)cap, valve (h)cap, valve (l)o-ring (5/8")o-ring (1/2")o-ring (1/2")o-ring (8mm)o-ring (8mm)o-ring (8mm)clip, receiver pipeclip, receiver pipescrew, pan (4x8)nut, flange (6mm)bolt, flange (6x16)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)
