P.S. PUMP COMPONENTS
View large diagramHide diagramView diagramView printable catalogTranslate

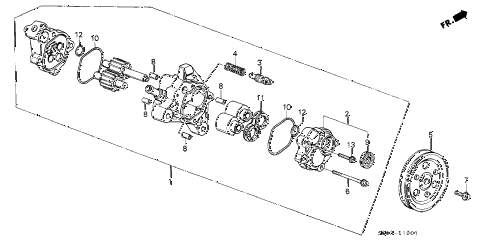

1987 LEGEND L 2 DOOR 4AT P.S. PUMP COMPONENTS diagram

  • 002

    cover, fr. oil pump

    Part Number: 56250-PH7-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 003

    spool assy. (-0.005 / 0) (a)

    Part Number: 56350-PC1-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 003

    spool assy. (0 / +0.006) (b)

    Part Number: 56360-PC1-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 003

    spool assy. (-0.005 / 0) (a)

    Part Number: 56350-PC1-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 003

    spool assy. (0 / +0.006) (b)

    Part Number: 56360-PC1-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 004

    spring, spool

    Part Number: 56385-PC1-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 006

    bolt, flange (6x78)

    Part Number: 90001-PC1-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 007

    bolt, special (8x18)

    Part Number: 90004-PE0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $8.03

    WARNING: California Prop 65 Information

  • 008

    pin, dowel (8x10)

    Part Number: 94301-08100

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.93

    WARNING: California Prop 65 Information

  • 009

    oil seal (16x30x7) (nok)

    Part Number: 91201-PE0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 010

    seal, housing (arai)

    Part Number: 91303-PH1-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 011

    seal, plunger

    Part Number: 91307-PH1-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 012

    o-ring (18.3x1.9) (arai)

    Part Number: 91322-PH1-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    Contact your dealer

    WARNING: California Prop 65 Information

  • 013

    bolt, flange (6x25)

    Part Number: 95700-06025-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.53

    WARNING: California Prop 65 Information

  • 013

    bolt, flange (6x25)

    Part Number: 95701-06025-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.53

    WARNING: California Prop 65 Information

  • 013

    bolt, flange (6x25)

    Part Number: 95700-06025-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.53

    WARNING: California Prop 65 Information

  • 013

    bolt, flange (6x25)

    Part Number: 95701-06025-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $1.53

    WARNING: California Prop 65 Information

Back to Top
cover, fr. oil pumpspool assy. (-0.005 / 0) (a)spool assy. (0 / +0.006) (b)spool assy. (-0.005 / 0) (a)spool assy. (0 / +0.006) (b)spring, spoolbolt, flange (6x78)bolt, special (8x18)pin, dowel (8x10)pin, dowel (8x10)pin, dowel (8x10)pin, dowel (8x10)oil seal (16x30x7) (nok)seal, housing (arai)seal, housing (arai)seal, plungero-ring (18.3x1.9) (arai)o-ring (18.3x1.9) (arai)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x25)
