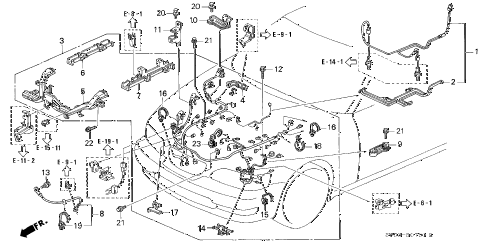

1997 TL BAS3.2 4 DOOR 4AT ENGINE WIRE HARNESS (V6) diagram
Back to Top
sub-wire, knock sensorholder, knock sensor sub-wirewire harness, engineprotector, wire (31mm)holder, engine harnessholder, r. injection harnessholder, l. injection harnesscable, sub-groundclamp a, engine wire harnessclamp b, engine wire harnessclamp d, engine wire harnessbolt (6x15)bolt, ground (6x16)clip, wire harnessclip a, harness band (129.4mm)(dark gray)clip, harness band (145.2mm) (natural)clip, harness band (145.2mm) (natural)clip, harnessclip, tube (11mm) (black)band, wire harness (93.5mm) (white)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x16)
