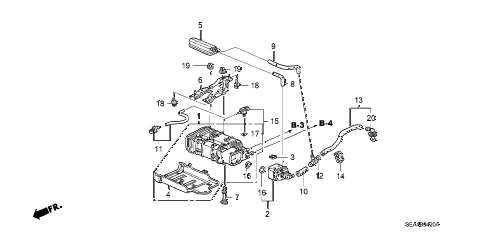

2007 TSXNAVIGATION 4 DOOR 6MT CANISTER diagram
Back to Top
canister assy.filter, dust (does not come w/canister assy.)retainerprotectorseparator, canister dustbracket, canisterbolt, canister mounting (8mm)tube a, dust separatortube b, dust separatortube a, canister draintube assy., pressure sensorjoint, three waytube assy., drainclamp, drain tubesensor, vent pressureo-ringo-ringbolt-washer (6x16)bolt-washer (6x16)nut, flange (8mm)nut, flange (8mm)joint, drain tube
