View large diagramHide diagramView diagramView printable catalogTranslate

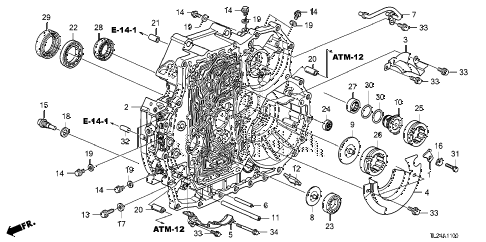

2012 TSX TECHV6 4 DOOR 5AT AT TORQUE CONVERTER CASE (V6) diagram
Back to Top
plate, bearing settingcase, torque converterplate, oil catchplate, baffleplate, third bafflepipe (57.5mm)pipe, jointplate, oil guideplate, oil guidecollar, oil guidepipe (10x123)magnet, transmissionbolt, sealing (10mm)bolt, sealing (8mm)bolt, sealing (8mm)bolt, sealing (8mm)bolt, sealing (8mm)bolt, sealing (8mm)bolt, plug (18mm)washer, lock (6mm)gasket (10mm)washer, drain plug (18mm)gasket (8mm)gasket (8mm)gasket (8mm)gasket (8mm)gasket (8mm)pin, dowel (14x25)pin, dowel (14x25)pin, dowel (14x20)bearing, ball (41x70x9.7/8.5)bearing, ball (28x52x12/8)bearing, ball (12x24x6)bearing, needle (32x63x19)bearing, needle (40.5x74x24)bearing, needle (29x39x9.5)oil seal (35x54x8) (nok)oil seal (46x70x8) (arai)o-ring (36.5x2.0)o-ring (36.5x2.0)bolt, hex. (6x20)pin, dowel (10x20)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x55)
