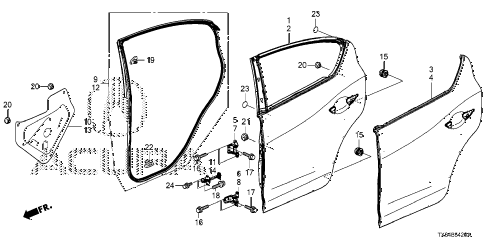

2013 ILX 24PREM2.4 4 DOOR 6MT REAR DOOR PANELS diagram
Back to Top
panel, r. rr. door (dot)panel, l. rr. door (dot)skin set, r. rr. doorskin set, l. rr. doorhinge, r. rr. door (upper)hinge, l. rr. door (upper)hinge, l. rr. door (lower)weatherstrip, r. rr. doorseal, r. rr. door holechecker, r. rr. doorweatherstrip, l. rr. doorseal, l. rr. door holechecker, l. rr. doorstopper, doorstopper, doorbolt, flange (8x24.5) (10.5mm)bolt, flange (8x24.5) (10.5mm)bolt, flange (8x18) (service)bolt, flange (8x18) (service)bolt, flange (8x22)bolt, flange (8x22)bolt, flange (8x22)clip, panelgrommet (11mm)grommet (11mm)grommet (11mm)grommet (20mm)clip, door weatherstripseal c, door panel hole (25mm)seal c, door panel hole (25mm)bolt-washer (6x16)
