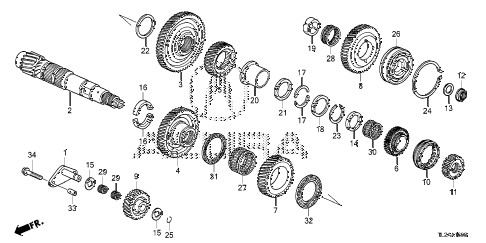

2013 TSX V6 4 DOOR 5AT AT COUNTERSHAFT (V6) diagram
Back to Top
holder, idle shaftcountershaftgear, countershaft lowgear, countershaft secondgear, countershaft fourthgear, countershaft fifthgear, countershaft idlegear, countershaft reversegear, reverse idleselector, reverse gearhub, selectornut, flange (24mm) (left hand thread)washer, spring (24mm)washer, thrust (35x47x3)washer, thrust (14x30x1)washer, thrust (14x30x1)cotter (40.5mm)cotter (40.5mm)cotter (42.2mm)cotter (42.2mm)retainer, cottercollar (31x40x14.5)collar (50.8mm)washer a (50.8mm) (1.91)washer b (50.8mm) (1.93)washer c (50.8mm) (1.95)washer d (50.8mm) (1.97)washer e (50.8mm) (1.99)washer f (50.8mm) (2.01)washer g (50.8mm) (2.03)washer h (50.8mm) (2.05)washer i (50.8mm) (2.07)washer j (50.8mm) (2.09)washer k (50.8mm) (2.11)washer l (50.8mm) (2.13)washer m (50.8mm) (2.15)washer n (50.8mm) (2.17)washer o (50.8mm) (2.19)washer p (50.8mm) (2.21)washer q (50.8mm) (2.23)washer r (50.8mm) (2.25)washer s (50.8mm) (2.27)washer t (50.8mm) (2.29)washer u (50.8mm) (2.31)washer v (50.8mm) (2.33)washer w (50.8mm) (2.35)washer x (50.8mm) (2.37)washer y (50.8mm) (2.39)washer z (50.8mm) (2.41)washer aa (50.8mm) (2.43)washer ab (50.8mm) (2.45)washer a (61mm) (1.525)washer b (61mm) (1.505)washer c (61mm) (1.485)washer d (61mm) (1.465)washer e (61mm) (1.445)washer f (61mm) (1.425)washer g (61mm) (1.405)circlip (outer) (46mm)ring, snap (94mm)ring, snap (14mm)bearing, ball (31x94x9.5/21)bearing, needle (62x70x28.7)bearing, needle (40x46x14.5) (torrington)bearing, needle (14x18x15) (ntn)bearing, needle (14x18x15) (ntn)bearing, needle (35x41x28.8)needle, thrust (70x88.1x4.5)needle, thrust (61x92.3x5.5)pin, dowel (10x16)bolt, flange (8x35)
