AT INPUT SHAFT - FORWARD CLUTCH
View large diagramHide diagramView diagramView printable catalogTranslate

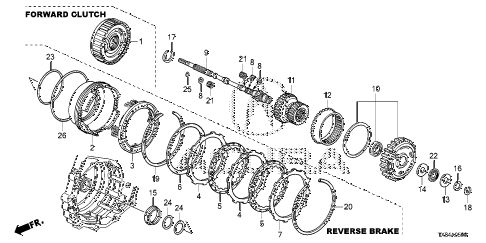

2014 ILX BASE 4 DOOR CVT AT INPUT SHAFT - FORWARD CLUTCH diagram

Back to Top
clutch assy., forwardpiston, reverse brakespring, reverse returnplate, reverse brakeplate, reverse brakedisk, reverse brakedisk, reverse brakespring, reverse brake diskplate, reverse brake end (2) (3.8mm)plate, reverse brake end (3.9mm) (b)plate, reverse brake end (3) (4.0mm)plate, reverse brake end (4.1mm) (c)plate, reverse brake end (4) (4.2mm)plate, reverse brake end (4.3mm) (d)plate, reverse brake end (5) (4.4mm)plate, reverse brake end (4.5mm) (e)plate, reverse brake end (6) (4.6mm)plate, reverse brake end (4.7mm) (f)plate, reverse brake end (7) (4.8mm)plate, reverse brake end (8) (5.0mm)ring, sealring, sealring, sealshaft, inputgear, planetarygear, sungear, ringwasher, thrust (25x41.5x2.5)washer, thrust (25x41.5x1)retainer, circlipshim a (25x31) (1.05)shim b (25x31) (1.12)shim c (25x31) (1.19)shim d (25x31) (1.26)shim e (25x31) (1.33)shim f (25x31) (1.40)shim g (25x31) (1.47)shim h (25x31) (1.54)shim i (25x31) (1.61)shim j (25x31) (1.68)shim k (25x31) (1.75)shim l (25x31) (1.82)shim m (25x31) (1.08)shim n (25x31) (1.15)shim o (25x31) (1.22)shim p (25x31) (1.29)shim q (25x31) (1.36)shim r (25x31) (1.43)shim s (25x31) (1.50)shim t (25x31) (1.57)shim u (25x31) (1.64)shim v (25x31) (1.71)shim w (25x31) (1.78)circlip (outer) (35mm)circlip (outer) (25mm)circlip (inner) (150mm)circlip (inner) (150mm)bearing, needle (20x24x17)bearing, needle (20x24x17)bearing, thrust needle (25x42x2)o-ring (86.6x2.3) (nok)o-ring (31.2x1.9) (arai)o-ring (31.2x1.9) (arai)ring, sealo-ring (135x2.5) (arai)
