FLOOR MAT
View large diagramHide diagramView diagramView printable catalogTranslate

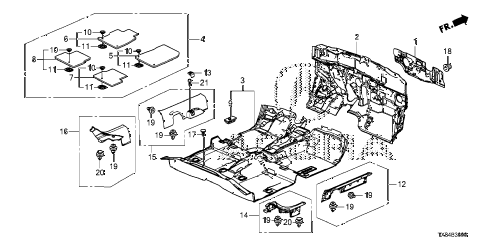

2014 ILX BASE 4 DOOR CVT FLOOR MAT diagram

  • 001

    insulator, dashboard (lower/outer)

    Part Number: 74251-TR0-A00

    ''


    KL - California Spec

    • $273.55

    WARNING: California Prop 65 Information

  • 002

    insulator, dashboard

    Part Number: 74260-TX6-A00

    ''


    KL - California Spec

    • $169.48

    WARNING: California Prop 65 Information

  • 003

    carpet assy., floor *nh690l*

    Part Number: 83301-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $428.27

    WARNING: California Prop 65 Information

  • 004

    floor mat set *nh690l*

    Part Number: 83600-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $209.80

    WARNING: California Prop 65 Information

  • 005

    floor mat, r. fr. *nh690l*

    Part Number: 83601-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • N/A

    WARNING: California Prop 65 Information

  • 006

    floor mat, l. fr. *nh690l*

    Part Number: 83602-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • N/A

    WARNING: California Prop 65 Information

  • 007

    floor mat, r. rr. *nh690l*

    Part Number: 83603-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • N/A

    WARNING: California Prop 65 Information

  • 008

    floor mat, l. rr. *nh690l*

    Part Number: 83604-TX6-A01ZA
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • N/A

    WARNING: California Prop 65 Information

  • 009

    holder, floor mat *nh167l*

    Part Number: 83650-TL2-A01ZJ
    (GRAPHITE BLACK)

    ''


    KL - California Spec

    • $25.58

    WARNING: California Prop 65 Information

  • 010

    grommet a, floor mat *nh167l*

    Part Number: 83651-TL2-A01ZA
    (GRAPHITE BLACK)

    ''


    KL - California Spec

    • $2.58

    WARNING: California Prop 65 Information

  • 011

    grommet b, floor mat

    Part Number: 83652-TL2-A01

    ''


    KL - California Spec

    • $1.92

    WARNING: California Prop 65 Information

  • 012

    garnish assy., r. fr. side (inner) *nh690l*

    Part Number: 84201-TR3-H02ZB
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $26.12

    WARNING: California Prop 65 Information

  • 013

    cap, fr. side *nh690l*

    Part Number: 84205-SNA-A01ZJ
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $8.98

    WARNING: California Prop 65 Information

  • 014

    garnish assy., r. rr. side (inner) *nh690l*

    Part Number: 84211-TR3-A02ZB
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $17.62

    WARNING: California Prop 65 Information

  • 015

    garnish assy., l. fr. side (inner) *nh690l*

    Part Number: 84251-TR3-H04ZB
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $26.12

    WARNING: California Prop 65 Information

  • 016

    garnish assy., l. rr. side (inner) *nh690l*

    Part Number: 84261-TR3-A03ZB
    (PREMIUM BLACK)

    ''


    KL - California Spec

    • $17.62

    WARNING: California Prop 65 Information

  • 017

    clip, trim (7mm) *nh167l*

    Part Number: 90667-S0D-003ZH
    (GRAPHITE BLACK)

    ''


    KL - California Spec

    • $2.22

    WARNING: California Prop 65 Information

  • 018

    clip, dashboard insulator (lower/outer)

    Part Number: 91517-SE0-003

    ''


    KL - California Spec

    • $5.42

    WARNING: California Prop 65 Information

  • 019

    clip, door lining (apple green)

    Part Number: 91560-SZW-003

    ''


    KL - California Spec

    • $0.40

    WARNING: California Prop 65 Information

  • 020

    clip, pillar garnish (light yellow)

    Part Number: 91560-SZW-J01

    ''


    KL - California Spec

    • $3.10

    WARNING: California Prop 65 Information

  • 021

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KL - California Spec

    • $0.77

    WARNING: California Prop 65 Information
