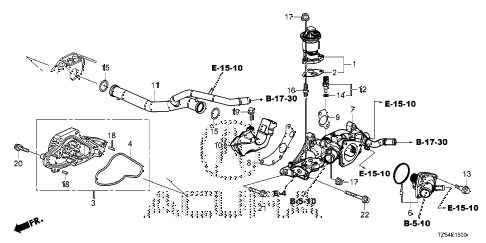

2014 MDX BASESH-AWD 5 DOOR 6AT WATER PUMP (3.5L) (1) diagram
Back to Top
valve set, egrgasket, egr valve (ishino gasket)water pump (yamada)gasket, water pump (yamada)seal, thermostat cover (nippon thermostat)cover assy., thermostatpassage, watergasket, fr. water passage (nippon leakless)gasket, rr. water passage (nippon leakless)seal, v-bank (lower)pipe, connectingsensor assy., water temperature (denso)bolt, special (6x19) (meira)bolt, special (6x19) (nippon thermostat)o-ring (denso)o-ring (31.2x4.1) (nok)o-ring (31.2x4.1) (nok)bolt, stud (8x22)nut, flange (8mm)nut, flange (8mm)pin, dowel (6x10)pin, dowel (6x10)bolt, flange (6x16)bolt, flange (6x22)bolt, flange (8x25)bolt, flange (8x75)
