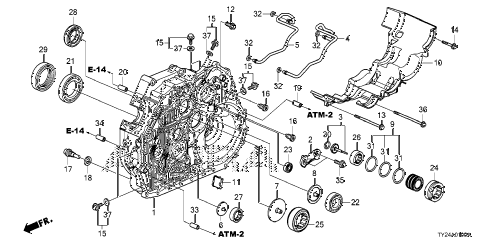

2014 RLX TECHAUDIO 4 DOOR 6AT AT TORQUE CONVERTER CASE (6AT) diagram
Back to Top
case, torque converter (dot)plate, oil catchpipe assy., feedpipe a, jointpipe b, jointplate, oil guide (t)plate, oil guideplate, oil guide (i)collar assy., oil guideplate, bafflemagnet, transmissionbolt, air checkbolt, flange (6x95)bolt, flange (6x30)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, plug (18mm)washer, drain plug (18mm)pin, dowel (14x25)pin, dowel (14x20)pin, dowel (14x20)bearing, ball (41x70x9.7/8.5)bearing, ball (25x61x15)bearing, ball (15x32x8)bearing, needle (32x63x19)bearing, needle (40.5x74x23)bearing, needle (28.6x40.8x13)bearing, needle (32x44x14.5)oil seal (37x56x8)oil seal (51x70x7.5)o-ring (16.7x1.9) (nok)o-ring (43x1.9) (nok)o-ring (43x1.9) (nok)o-ring (43x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)pin, dowel (10x16)pin, dowel (10x20)bolt, flange (6x18)bolt, flange (6x100)gasket (10mm)gasket (10mm)gasket (10mm)gasket (10mm)
