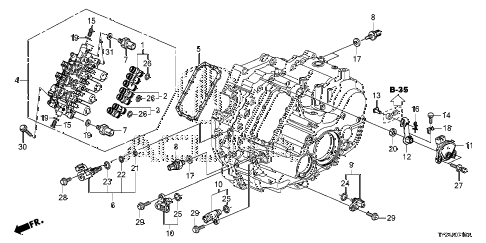

2014 RLX TECHAUDIO 4 DOOR 6AT AT SENSOR - SOLENOID - SECONDARY BODY (6AT) diagram
Back to Top
pipe (11x27) (a)pipe (11x27) (b)pipe (11x27) (c)body assy., secondary valvegasket, linear solenoidsolenoid assy. (c)switch assy., at oil pressureswitch assy., at oil pressureswitch assy., at oil pressureswitch assy., at oil pressuresensor assy., temperature (atf)pick-up assy.pick-up assy.sensor assy., positionsensor assy., positionsensor assy., positionlever, controlpin, control wirebolt, hex. (6mm)bolt, sealing (10mm)bolt, sealing (10mm)pin, lock (8mm)gasket (10mm)gasket (10mm)washer, lock (6mm)gasket (10mm)gasket (10mm)gasket (10mm)oil seal (12x22x7) (arai)o-ring (7.6x1.9) (keihin)o-ring (9.6x1.9)o-ring (11.7x1.9) (keihin)o-ring (12x2.4) (nok)o-ring (16x2.1) (nok)o-ring (16x2.1) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)bolt-washer (6x25)bolt, flange (6x14)bolt, flange (6x18)bolt, flange (6x18)bolt, flange (6x18)bolt, flange (6x30)gasket (10mm)
