View large diagramHide diagramView diagramView printable catalogTranslate

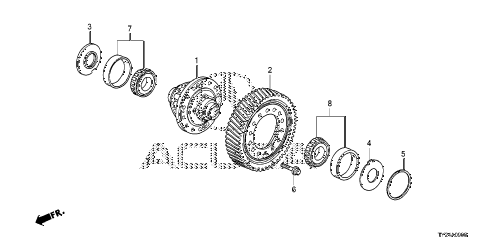

2014 RLX TECHAUDIO 4 DOOR 6AT AT DIFFERENTIAL (6AT) diagram
Back to Top
differential assy.gear, final drivenspacer (48x87x1)spacer (48x85x1)shim a (85mm) (1.35)shim b (85mm) (1.375)shim c (85mm) (1.40)shim d (85mm) (1.425)shim e (85mm) (1.45)shim f (85mm) (1.475)shim g (85mm) (1.50)shim h (85mm) (1.525)shim i (85mm) (1.55)shim j (85mm) (1.575)shim k (85mm) (1.60)shim l (85mm) (1.625)shim m (85mm) (1.65)shim n (85mm) (1.675)shim o (85mm) (1.70)shim p (85mm) (1.725)shim q (85mm) (1.75)shim r (85mm) (1.775)shim s (85mm) (1.80)shim t (85mm) (1.825)shim u (85mm) (1.85)shim v (85mm) (1.875)shim w (85mm) (1.90)shim x (85mm) (1.925)shim y (85mm) (1.95)shim z (85mm) (1.975)shim aa (85mm) (2.00)shim ab (85mm) (2.025)shim ac (85mm) (2.05)shim ad (85mm) (2.075)shim ae (85mm) (2.10)shim af (85mm) (2.125)shim ag (85mm) (2.15)shim ah (85mm) (2.175)shim ai (85mm) (2.20)shim aj (85mm) (2.225)shim ak (85mm) (2.25)shim al (85mm) (2.275)shim am (85mm) (2.30)shim an (85mm) (2.325)shim ao (85mm) (2.35)shim ap (85mm) (1.250)shim aq (85mm) (1.275)shim ar (85mm) (1.300)shim as (85mm) (1.325)bolt, special (11mm)bearing, taper (47x87x24.75)bearing, taper (47x85x24.7)
