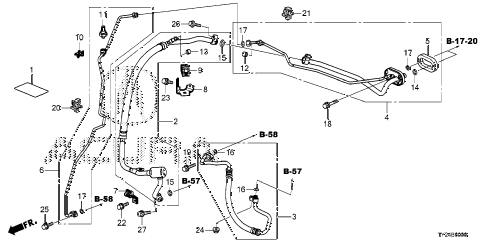

2014 RLX TECHAUDIO 4 DOOR 6AT A/C AIR CONDITIONER (HOSES/PIPES) (2WD) diagram
Back to Top
label, air conditioner caution(hfc134a)hose, suctionhose, dischargepipe assy., air conditionerseal, flangepipe, receiverclamp, suction hosestay, air conditioner pipeclamp, air conditioner pipe (16mm)clip, receiver pipesensor assy., pressure (denso)cap h, valvecap, valve (l)o-ring (5/8")o-ring (1/2")o-ring (1/2")o-ring (8mm)o-ring (8mm)o-ring (8mm)bolt, flange (6x38) (guide)bolt, flange (6x25)clip, receiver pipeclip, receiver pipebolt-washer (6x16)bolt-washer (6x16)nut, flange (6mm)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x30)
